REAR DOOR LATCH AND LOCK ACTUATOR INSPECTION [5HB]

id0914004306d4

1.  The following actuator and switch are integrated with the rear door latch and lock actuator. Inspect the rear door latch and lock actuator according to each inspection procedure for the following items.

•  Rear door lock actuator (See REAR DOOR LOCK ACTUATOR INSPECTION [5HB].)

•  Rear door latch switch (See REAR DOOR LATCH SWITCH INSPECTION [5HB].)

•  Rear door lock-link switch (Vehicles with theft-deterrent system) (See DOOR LOCK-LINK SWITCH INSPECTION.)

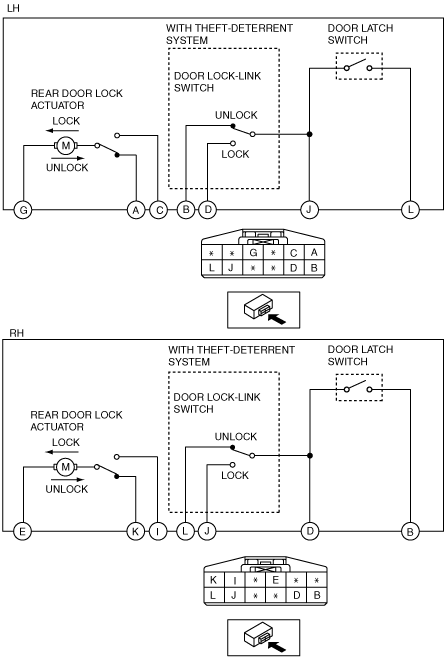

Double Locking System

am2zzw00003789

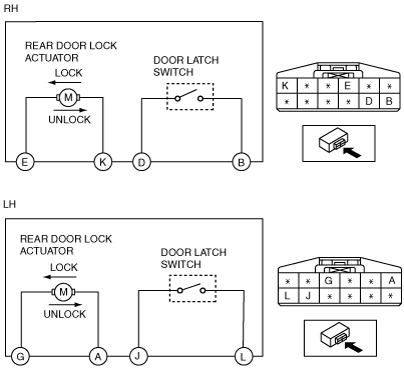

Power Door Lock System

am2zzw00000680
