LIFTGATE LATCH SWITCH INSPECTION

id091400433300

1.  Disconnect the negative battery cable.

2.  Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

3.  Remove the liftgate latch and lock actuator. (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

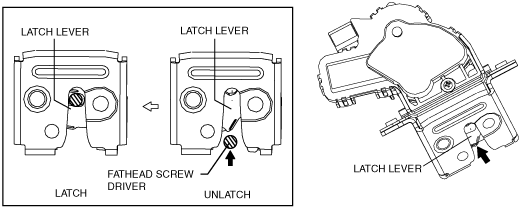

4.  Press the latch in using a flathead screwdriver to inspect the latch lever condition.

am2zzw00000694

5.  Verify that the continuity is as indicated in the table.

am2zzw00003791

•  If not as indicated in the table, replace the liftgate latch and lock actuator.

am2zzw00006267
