ADVANCED KEY ID CODE REGISTRATION [ADVANCED KEYLESS AND START SYSTEM]

id0914004493b0

Caution

•  Do not place the following devices in the vehicle while programming, otherwise programming cannot be performed:

―  M-MDS

―  Personal computer

―  Devices that can send/receive radio waves

•  Verify that the other transmitter is not being operated around the servicing area during advanced key programming.

Note

•  Use the M-MDS and start programming if the condition corresponds to the following:

―  No programmed advanced keys (two or more)

―  Keyless control module is replaced

•  If six advanced keys are already programmed, the programming mode does not launch. If programming is needed, use the M-MDS to erase the unnecessary advanced key programming.

Two Programmed Advanced Keys Available

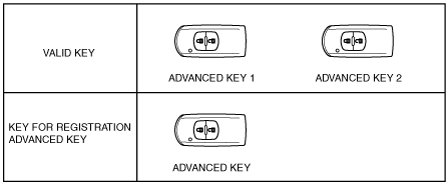

1.  Bring two programmed advanced keys and one unprogrammed advanced key into the vehicle.

am2zzw00000531

2.  Close all doors.

3.  Insert the auxiliary key into the ignition key cylinder.

Note

•  Complete the procedures up to Step 7 within 30 s after the auxiliary key is inserted.

4.  Turn the ignition switch to the ON position.

5.  Wait until the keyless indicator light in the instrument cluster illuminates. (Turns off 3 s after ignition switch is turned to ON)

6.  Press the UNLOCK button of advanced key 1.

7.  Press the UNLOCK button of advanced key 2.

8.  From the ignition switch in the ON position, turn the ignition switch in the order indicated below.

•  ACC_ON→ACC_ON→ACC_ON

9.  Open/close the driver's door 3 times.

Note

•  After Step 9 is completed and the advanced key programming is activated, the door lock actuator operates to lock, and then operates to unlock.

•  If the door lock actuator does not operate, repeat the procedure from Step 2.

10.  Press the UNLOCK button of the unprogrammed advanced key and wait approx. 5 s.

Note

•  After Step 10 is completed and the advanced key is programmed, the door lock actuator operates to lock, and then operates to unlock.

11.  If programming more advanced keys, remove the auxiliary key once, and then repeat the procedure from Step 2.

Using the M-MDS

1.  Fully lower the driver-side door glass.

2.  Connect the M-MDS (IDS) to the DLC-2.

am2zzw00002164

3.  Set the M-MDS outside the vehicle with its cable passing through the door glass opening.

Caution

•  Cover the vehicle body with a clean rag so as not to damage the vehicle body with the cable.

4.  After the vehicle is identified, select the following items from the initial screen of the M-MDS.

•  When using the IDS (laptop PC)

1.  Select the “Body”.

2.  Select the “Security”.

3.  Select the "PATS Functions".

5.  Then, select item from the screen menu in the following order.

1.  Select the “Program Additional Advanced Key”.

6.  Perform the security access according to the directions on the M-MDS screen.
