INTRUDER SENSOR REMOVAL/INSTALLATION

id091400809400

1.  Disconnect the negative battery cable.

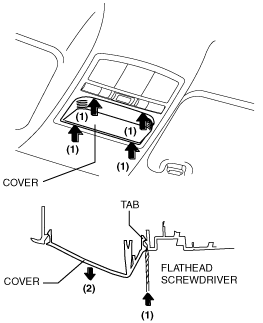

2.  Using a tape-wrapped flathead screwdriver, press the tabs in the direction of the arrows (1) shown in the figure, and remove the cover in the direction of the arrow (2).

am2zzw00000461

3.  Remove the connector under the condition from procedure 2.

am2zzw00000751

4.  Install in the reverse order of removal.
