ROOF MOLDING INSTALLATION

id091600447600

1.  Install the roof molding to the front T-stud.

am2zzw00001898

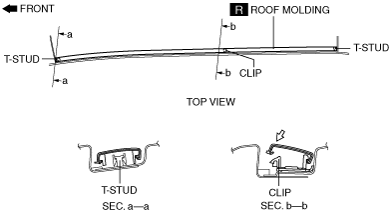

2.  Hook the roof molding to the clip and attach the roof molding while pressing it in the direction of the arrow shown in the figure.

3.  Install the roof molding to the rear T-stud.
