REAR SPOILER REMOVAL

id091600451500

1.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION)

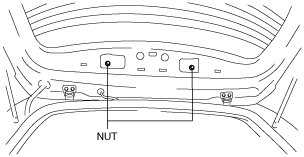

2.  Remove the nuts.

am2zzw00001925

3.  Peel off double-sided adhesive tape from the position shown in the figure using a utility knife.

am2zzw00001926

Warning

•  Using a utility knife with bare hands could cause injury. Always wear gloves when using a utility knife.

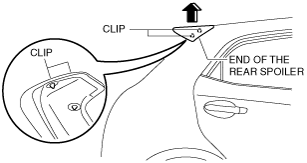

4.  Pull up the end of the rear spoiler in the direction of the arrow shown in the figure and remove the clips.

adejjw00003311

5.  Pull up the rear spoiler in the direction of the arrow shown in the figure and remove it while detaching the guide pins.

am2zzw00001927
