COLUMN COVER REMOVAL/INSTALLATION

id091700453700

1.  Pull down the steering wheel.

2.  Remove the key cylinder cap. (Vehicles with advanced keyless and start system)

3.  Pull the upper column cover in the direction of the arrow in the order of (1) and (2), then remove the upper column cover while detaching the tabs and pin.

L.H.D.

am2zzw00000267

R.H.D.

adejjw00003368

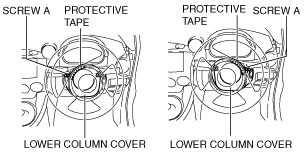

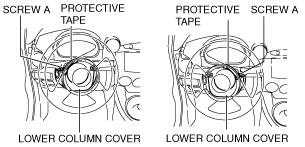

4.  Rotate the steering wheel to the left and right until it reaches the positions shown in the figure and remove screws A.

L.H.D.

am2zzw00000268

R.H.D.

adejjw00003094

5.  Pull up the steering wheel.

6.  Remove screw B, then remove the lower column cover in the direction of the arrow (4) while keeping it open in the direction of the arrow (3) shown in the figure.

L.H.D.

am2zzw00000269

R.H.D.

adejjw00003369

7.  Install in the reverse order of removal.
