GLOVE COMPARTMENT REMOVAL/INSTALLATION
id091700453800
L.H.D.
1. Push both ends of the inner-side glove compartment in the direction of the arrow (1) shown in the figure, detach the pins from the dashboard, and remove the glove compartment in the direction of the arrow (2).
am2uuw00001089
|
2. Install in the reverse order of removal.
R.H.D.
1. Move the hook in the direction of the arrow in the order of remove them.
am2zzw00001506
|

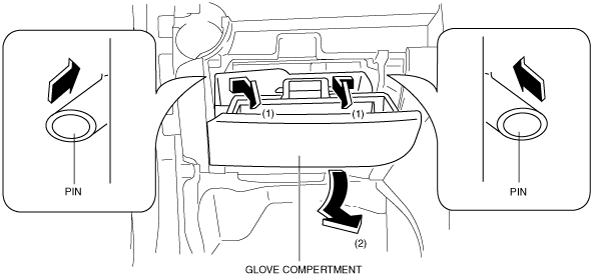

2. Push both ends of the inner-side glove compartment in the direction of the arrow (1) shown in the figure, detach the pins from the dashboard, and remove the glove compartment in the direction of the arrow (2).
am2zzw00001507
|
3. Install in the reverse order of removal.
