SIDE WALL REMOVAL/INSTALLATION

id091700454400

Right-side

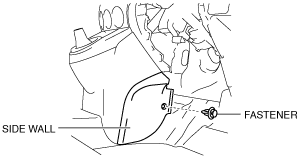

1.  Remove the fastener.

adejjw00003381

2.  Pull the side wall in the direction of the arrow in the order of (1) and (2), then remove it while detaching clips A and tab B.

am2zzw00001514

3.  Install in the reverse order of removal.

Left-side

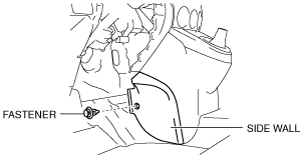

1.  Remove the fastener.

am2zzw00001515

2.  Pull the side wall in the direction of the arrow in the order of (1) and (2), then remove it while detaching clips A and B and tab C.

am2zzw00001516

3.  Install in the reverse order of removal.
