REAR CONSOLE REMOVAL/INSTALLATION

id091700457500

L.H.D.

1.  Disconnect the negative battery cable.

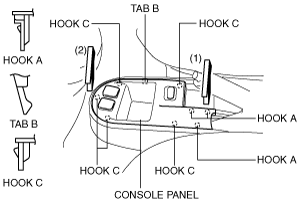

2.  Pull the console panel in the direction of the arrow (1), (2) shown in the figure and remove it while detaching hooks A, tab B, and the hooks C.

am2uuw00000992

3.  Disconnect the cigarette lighter connector, auxiliary jack connector and door lock switch connector (vehicles with auxiliary jack).

4.  Remove nut D, then remove the clip F.

am2uuw00000993

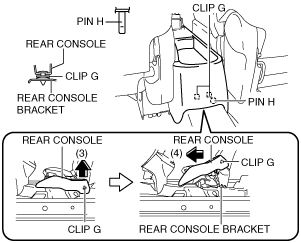

5.  Pull up the rear console in the direction of the arrow (3) shown in the figure, remove clips G, move the rear console in the direction of the arrow (4), and remove it avoiding the parking brake lever.

am2uuw00000997

Caution

•  When moving the rear console in the direction of the arrow (4), be careful not to damage pins E and H.

6.  Install in the reverse order of removal.

R.H.D.

1.  Disconnect the negative battery cable.

2.  Pull the console in the direction of the arrow shown in the figure and remove it while detaching clips A, hooks B, and the tab.

adejjw00003120

3.  Disconnect the cigarette lighter connector and auxiliary jack connector (vehicles with auxiliary jack).

4.  Remove nut C.

am2zzw00001815

5.  Pull up the rear console in the direction of the arrow (1) shown in the figure, remove clips E, move the rear console in the direction of the arrow (2), and remove it avoiding the parking brake lever.

adejjw00003122

Caution

•  When moving the rear console in the direction of the arrow (2), be careful not to damage pins D and F.

6.  Install in the reverse order of removal.
