FRONT CONSOLE COMPONENT DISASSEMBLY/ASSEMBLY
id091700458600
R.H.D.
ATX
1. Disassemble in the order indicated in the table.

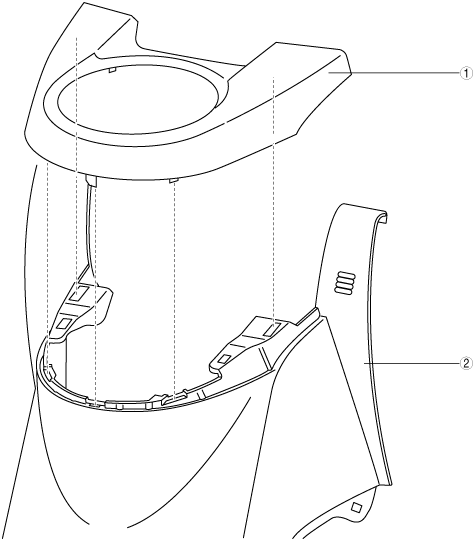

am2zzw00002654
|
|
1
|
Boot panel
|
|
2
|
Front console
|
2. Assemble in the reverse order of disassembly.
MTX
1. Disassemble in the order indicated in the table.

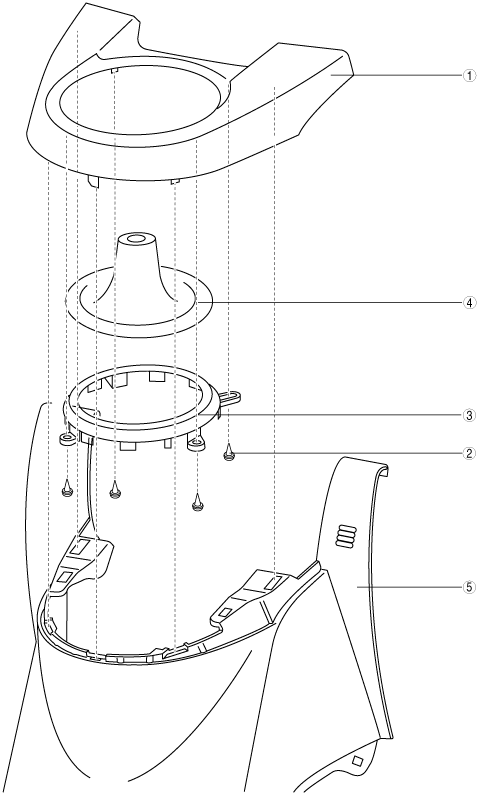

am2zzw00006085
|
|
1
|
Boot panel
|
|
2
|
Screw
|
|
3
|
Set panel
|
|
4
|
Boot
|
|
5
|
Front console
|
2. Assemble in the reverse order of disassembly.
L.H.D.
ATX
1. Disassemble in the order indicated in the table.
am2uuw00000973
|
|
1
|
Boot panel
|
|
2
|
Front console
|
2. Assemble in the reverse order of disassembly.
MTX
1. Disassemble in the order indicated in the table.

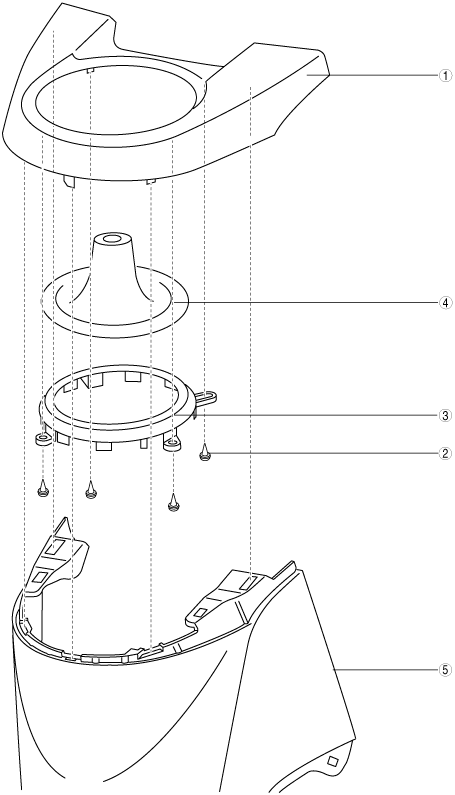

am2zzw00006086
|
|
1
|
Boot panel
|
|
2
|
Screw
|
|
3
|
Set panel
|
|
4
|
Boot
|
|
5
|
Front console
|
2. Assemble in the reverse order of disassembly.
