TRUNK SIDE TRIM REMOVAL/INSTALLATION

id091700462300

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION)

(2)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION)

(3)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION)

(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION)

3.  Remove the screw A and fasteners B.

am2zzw00003744

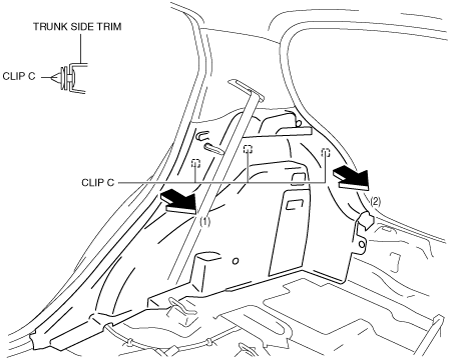

4.  Pull the trunk side trim in the direction of the arrow in the order of (1) and (2), then remove the clips C.

am2zzw00006088

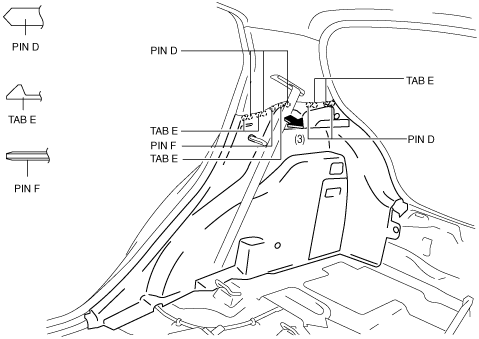

5.  Pull the trunk side trim in the direction of the arrow in the order of (3) and remove it while detaching pins D, tabs E, and pin F.

am2zzw00006089

6.  Disconnect the cargo compartment light connector.

7.  Install in the reverse order of removal.
