TRUNK SIDE TRIM REMOVAL/INSTALLATION [3HB]

id0917004623z3

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION [3HB].)

(2)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

(3)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

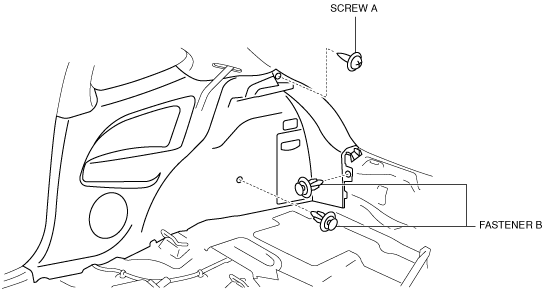

3.  Remove the screw A and fasteners B.

am2zzw00003483

4.  Pull the trunk side trim in the direction of the arrow in the order of (1) and (2), then remove the clips C and clip D.

am2zzw00006090

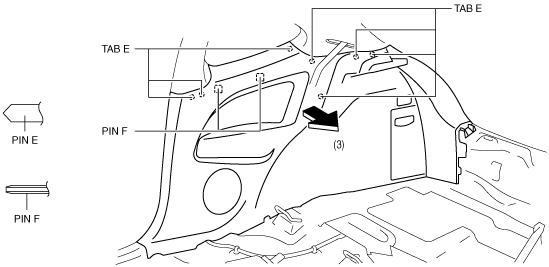

5.  Pull the trunk side trim in the direction of the arrow in the order of (3) and remove it while detaching tabs E, and pins F.

am2zzw00006091

6.  Disconnect the cargo compartment light connector.

7.  Install in the reverse order of removal.
