DASHBOARD UNDER COVER REMOVAL/INSTALLATION

id091700470000

1.  While pressing the hook inside the service hole in the direction of the arrow (1) shown in the figure, pull the dashboard under cover in the direction of the arrow (2), and then remove the hook and the guide pin.

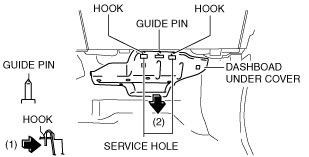

L.H.D.

am2zzw00001518

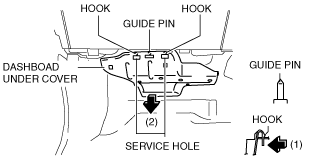

R.H.D.

am2zzw00001519

2.  Remove the dashboard under cover.

3.  Install in the reverse order of removal.
