FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY [3HB]
id0917007200z3
1. Disassemble in the order shown in the figure.
2. Assemble in the reverse order of disassembly.

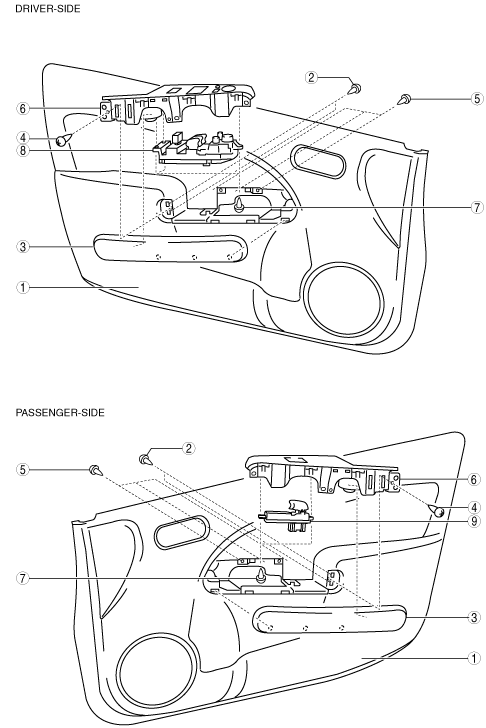

L.H.D.
am2zzw00003428
|

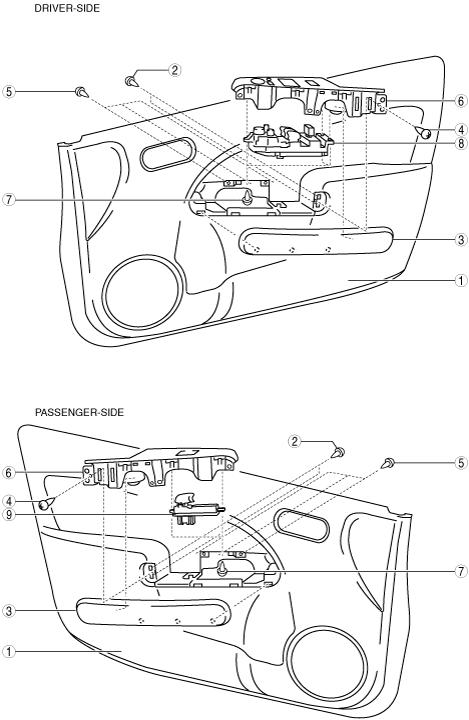

R.H.D.
am2zzw00003429
|
|
1
|
Front door trim
|
|
2
|
Screw A
|
|
3
|
Front door decoration panel
|
|
4
|
Screw B
|
|
5
|
Screw C
|
|
6
|
Switch panel
|
|
7
|
Screw D
|
|
8
|
Power window main switch
|
|
9
|
Power window subswitch
|
