HEADLIGHT AIMING

id091800464000

Note

•  The reflectors for the low and high beams are integrated. Therefore, perform the headlight aiming adjustment on either the low or high beam.

2-Beam Type Headlight

Low-beam Adjustment

1.  Point the headlight beams to a wall and verify that the headlight beams are as shown in the figure.

am2zzw00005685

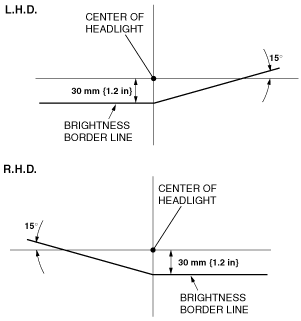

2.  Make a headlight adjustment screen as shown in the figure using double-weight, white paper.

am2zzw00005686

3.  Adjust the tire pressure to the specification.

4.  Park the vehicle on level ground, in an unloaded condition.

5.  Sit on the driver-side seat alone.

6.  Put the white screen in front of the vehicle.

7.  Line up the headlights with the white screen at a distance of 3 m {9.8 ft} apart.

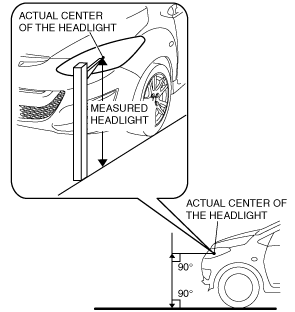

8.  Measure the height at the center of the headlight.

am2zzw00005687

Note

•  Since the height of the vehicle varies depending on the vehicle situation, measure the height of the center of the headlight using the actual vehicle.

9.  Align the center of the adjustment screen with the position indicated in the figure, then affix the screen to the wall.

am2zzw00005688

10.  Start the engine and charge the battery.

11.  Turn on the headlight low beams.

12.  Block the light of the headlight which is not adjusted.

13.  Switch the headlight leveling switch at “0” position.

14.  Verify that the elbow point of the headlight is at the position indicated by the adjustment screen.

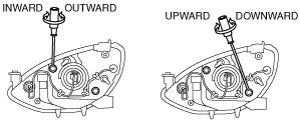

•  If the elbow point is not at the position indicated by the adjustment screen, turn the adjustment screw as shown in the figure to adjust the elbow point to the position indicated by the adjustment screen.

am2zzw00003354

High-beam Adjustment

1.  Make a headlight adjustment screen as shown in the figure using double-weight, white paper.

am2zzw00005689

2.  Adjust the tire pressure to the specification.

3.  Park the vehicle on level ground, in an unloaded condition.

4.  Sit on the driver-side seat alone.

5.  Put the wall in front of the vehicle.

6.  Line up the headlights with the wall at a distance of 3 m {9.8 ft} apart.

7.  Measure the height at the center of the headlight.

am2zzw00005687

Note

•  Since the height of the vehicle varies depending on the vehicle situation, measure the height of the center of the headlight using the actual vehicle.

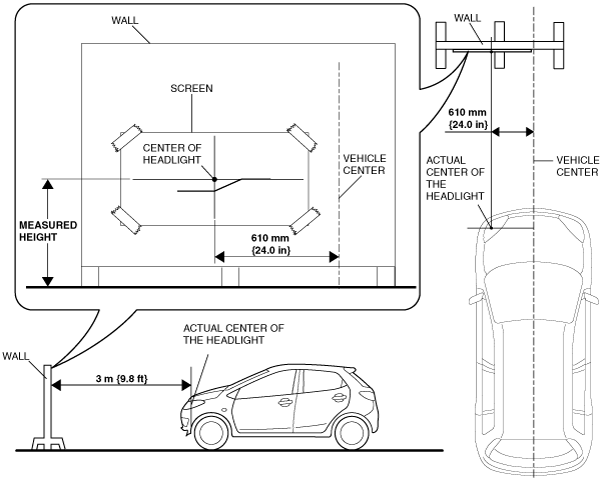

8.  Align the center of the adjustment screen with the position indicated in the figure, then affix the screen to the wall.

am2zzw00005690

9.  Start the engine and charge the battery.

10.  Turn on the headlight high beams.

11.  Block the light of the headlight which is not adjusted using a partition.

12.  Switch the headlight leveling switch at “0” position.

13.  Verify that the center of the hot zone (the bright part of high beam) is at the center of the headlight on the adjustment screen.

am2zzw00005691

•  If the center of the hot zone is not at the center of the headlight on the adjustment screen, turn the adjustment screw to adjust the center of the hot zone.

am2zzw00003360

4-Beam Type Headlight

Low-beam Adjustment

1.  Point the headlight beams to a wall and verify that the headlight beams are as shown in the figure.

am2zzw00005685

2.  Make a headlight adjustment screen as shown in the figure using double-weight, white paper.

am2zzw00005686

3.  Adjust the tire pressure to the specification.

4.  Park the vehicle on level ground, in an unloaded condition.

5.  Sit on the driver-side seat alone.

6.  Put the white screen in front of the vehicle.

7.  Line up the headlights with the white screen at a distance of 3 m {9.8 ft} apart.

8.  Measure the height at the center of the headlight.

am2zzw00005687

Note

•  Since the height of the vehicle varies depending on the vehicle situation, measure the height of the center of the headlight using the actual vehicle.

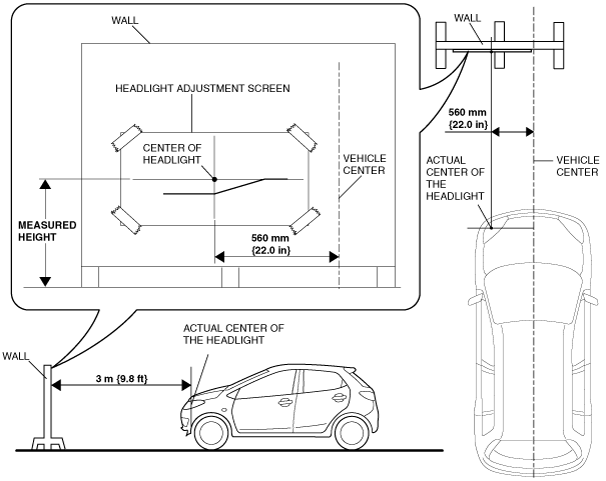

9.  Align the center of the adjustment screen with the position indicated in the figure, then affix the screen to the wall.

am2zzw00005692

10.  Start the engine and charge the battery.

11.  Turn on the headlight low beams.

12.  Block the light of the headlight which is not adjusted.

13.  Switch the headlight leveling switch at “0” position.

14.  Verify that the elbow point of the headlight is at the position indicated by the adjustment screen.

•  If the elbow point is not at the position indicated by the adjustment screen, turn the adjustment screw as shown in the figure to adjust the elbow point to the position indicated by the adjustment screen.

am2zzw00003721

High-beam Adjustment

1.  Make a headlight adjustment screen as shown in the figure using double-weight, white paper.

am2zzw00005689

2.  Adjust the tire pressure to the specification.

3.  Park the vehicle on level ground, in an unloaded condition.

4.  Sit on the driver-side seat alone.

5.  Put the wall in front of the vehicle.

6.  Line up the headlights with the wall at a distance of 3 m {9.8 ft} apart.

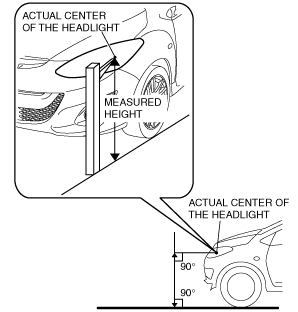

7.  Measure the height at the center of the headlight.

am2zzw00005693

Note

•  Since the height of the vehicle varies depending on the vehicle situation, measure the height of the center of the headlight using the actual vehicle.

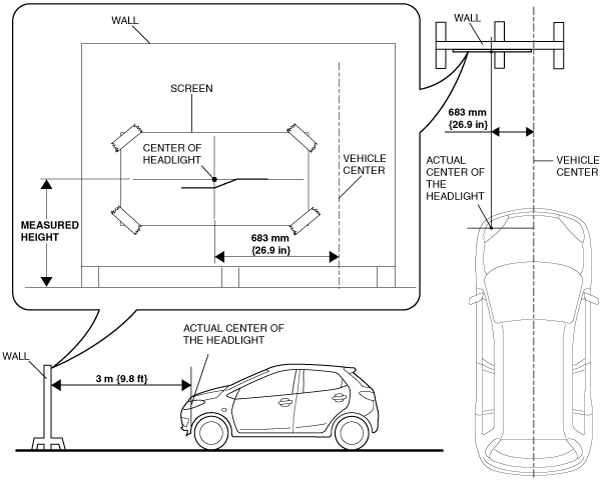

8.  Align the center of the adjustment screen with the position indicated in the figure, then affix the screen to the wall.

am2zzw00005694

9.  Start the engine and charge the battery.

10.  Turn on the headlight high beams.

11.  Block the light of the headlight which is not adjusted using a partition.

12.  Switch the headlight leveling switch at “0” position.

13.  Verify that the center of the hot zone (the bright part of high beam) is at the center of the headlight on the adjustment screen.

am2zzw00005691

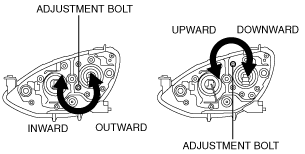

•  If the center of the hot zone is not at the center of the headlight on the adjustment screen, turn the adjustment bolt to adjust the center of the hot zone.

am2zzw00005883
