FRONT FOG LIGHT BULB REMOVAL/INSTALLATION

id091800468600

1.  Disconnect the negative battery cable.

2.  Remove the screws shown in the figure and bend back the mudguard in the direction of the arrow.

am2zzw00005886

3.  Disconnect the connector.

am2uuw00000809

4.  Remove the front fog light bulb.

Caution

•  A bulb generates extremely high heat when it is illuminated.If the surface of the bulb is soiled, heat of higher temperature than normal will build, shortening the life of the bulb. When replacing the bulb, hold the metal flange, not the glass.

5.  Install in the reverse order of removal. (See Front Fog Light Bulb Installation Note.)

Front Fog Light Bulb Installation Note

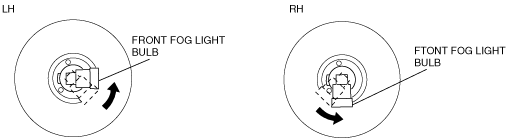

1.  Install the front fog light bulb by turning it in the direction of the arrow.

am2zzw00002173
