WINDSHIELD WIPER MOTOR DISASSEMBLY/ASSEMBLY
id091900474900
1. Disassemble in the order indicated in the figure.
am2zzw00005463
|
|
1
|
Cover
|
|
2
|
Bolt
|
|
3
|
Wiper link No.1 (See Ball Joint Assembly Note.)
|
|
4
|
Windshield wiper motor (See Windshield Wiper Motor Assembly Note.)
|
|
5
|
Wiper link No.2 (See Ball Joint Assembly Note.)
|
|
6
|
Main link (See Ball Joint Assembly Note.)
|
2. Assemble in the reverse order of disassembly.
Ball Joint Assembly Note
1. Use a clean cloth to protect the link and squeeze using pliers.
am2zzw00005464
|
Windshield Wiper Motor Assembly Note
1. Connect the windshield wiper motor to the vehicle wiring harness connector, operate the windshield wipers, and then stop them at the auto-stop position.

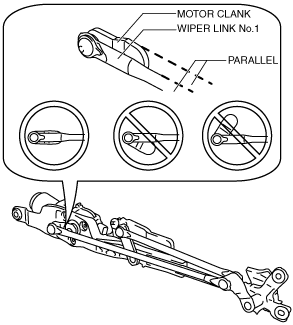

2. Adjust the motor crank and wiper link No.1 so that they are parallel as shown in the figure.
am2zzw00005465
|
