REAR WIPER MOTOR REMOVAL/INSTALLATION

id091900475500

1.  Disconnect the negative battery cable.

2.  Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

3.  Remove the rear wiper arm and blade. (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

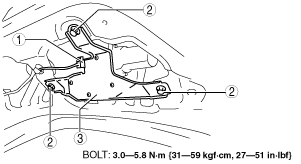

4.  Remove in the order indicated in the table.

am2zzw00005479

1	Connector
2	Bolt
3	Rear wiper motor

5.  Install in the reverse order of removal.

6.  Adjust the rear wiper arm and blade. (See REAR WIPER ARM AND BLADE ADJUSTMENT.)
