AUDIO CONTROL SWITCH REMOVAL/INSTALLATION
id092000800200
1. Disconnect the negative battery cable and wait for 1 min or more.
2. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
3. Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [L.H.D.].) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [R.H.D.].)

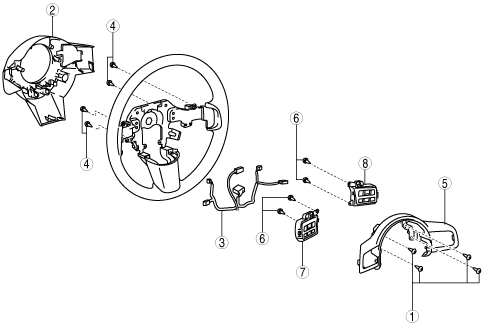

4. Remove in the order indicated in the table.
am2uuw00000764
|
|
1
|
Screw
|
|
2
|
Cover
(See Cover Removal Note.)
(See Cover Installation Note.)
|
|
3
|
Wiring harness
|
|
4
|
Screw
|
|
5
|
Panel
|
|
6
|
Screw
|
|
7
|
Audio control switch
|
|
8
|
Cruise control switch (vehicles with cruise control system)
|
5. Install in the reverse order of removal.
Cover Removal Note
1. Remove the cover tabs and pins from the steering wheel.
am2zzw00000241
|
2. Remove the cover in the direction of the arrow shown in the figure.
am2zzw00000242
|
Cover Installation Note
1. Secure the audio control switch wiring harness to the cover hooks.
am2zzw00000243
|
