CENTER ROOF ANTENNA REMOVAL/INSTALLATION

id092000801600

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(2)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(3)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(4)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(5)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(6)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(7)  Front seat belt adjuster anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(8)  Front seat belt upper anchor installation bolt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(9)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(10)  Rain sensor cover (Vehicles with auto light / wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION.)

3.  Disconnect the rain sensor connector. (vehicles with auto light/wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION.)

4.  Partially peel back the seaming welt.

5.  Partially peel back the headliner.

6.  Remove in the order indicated in the table.

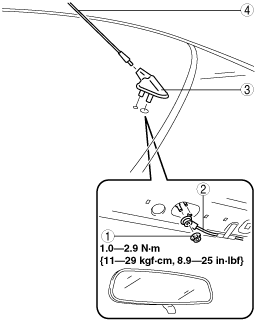

am2uuw00000757

1	Nut
2	Antenna feeder No.2
3	Center roof antenna (See Center Roof Antenna Installation Note.)
4	Antenna rod

7.  Install in the reverse order of removal.

8.  After installation, verify that the rubber of the center roof antenna is installed to the roof panel with no space between the two.

Center Roof Antenna Installation Note

1.  Install the antenna feeder No.2 stopper to the pin of the center roof antenna.

am2zzw00005418
