FRONT DOOR SPEAKER REMOVAL/INSTALLATION

id092000802200

1.  Disconnect the negative battery cable.

2.  Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION.)

3.  Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

4.  Remove in the order indicated in the table.

am2zzw00000295

1	Connector
2	Screw
3	Front door speaker (See Front Door Speaker Removal Note.)

5.  Install in the reverse order of removal.

Front Door Speaker Removal Note

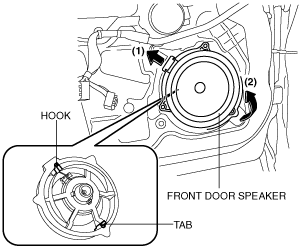

1.  Remove the front door speaker in the direction of the arrow shown in the figure.

am2zzw00000353
