MAIN FUSE REMOVAL/INSTALLATION

id092100801500

MZR 1.3, MZR 1.5

1.  Disconnect the negative battery cable.

2.  Remove the main fuse cover in the direction of the arrow while pressing the tab indicated in the figure.

am2zzw00001995

3.  Remove nuts A, B, and C shown in the figure.

am2zzw00001996

4.  Remove the main fuse.

5.  Install in the reverse order of removal.

MZ-CD 1.6

With PTC heater

1.  Disconnect the negative battery cable.

2.  Remove the main fuse cover in the direction of the arrow while pressing the tab indicated in the figure.

am2zzw00002598

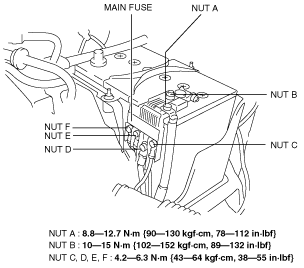

3.  Remove nuts A, B, C, D, E and F shown in the figure.

am2zzw00003188

4.  Remove the main fuse.

5.  Install in the reverse order of removal.

Without PTC heater

1.  Disconnect the negative battery cable.

2.  Remove the main fuse cover in the direction of the arrow while pressing the tab indicated in the figure.

am2zzw00002598

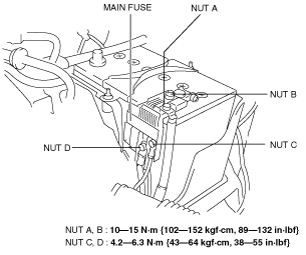

3.  Remove nuts A, B, C and D shown in the figure.

am2zzw00003985

4.  Remove the main fuse.

5.  Install in the reverse order of removal.
