PARKING SENSOR SYSTEM OPERATION

id092200036000

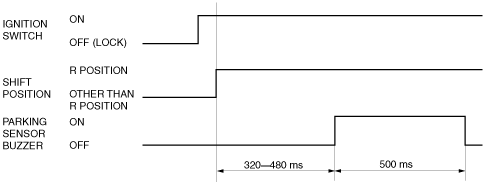

• The parking sensor system activates when the ignition is switched ON. If the parking sensor system activates normally and the selector lever (ATX / CVT) / shift lever (MTX) is in the R position, the microcomputer in the parking sensor control module sounds the buzzer sounds according to the following:.

am2zzn00001585

Obstruction Detection Function Operation

1. The ultrasonic sensor emits ultrasonic waves which an obstruction will reflect.

2. The reflected wave from the obstruction is received by the ultrasonic sensor and sent to the parking sensor control module.

3. When the microcomputer in the parking sensor control module receives the reflected signal, it calculates the detected distance to the obstruction.

4. The microcomputer in the parking sensor control module operates the ultrasonic sensor based on the distance between the parking sensor and the obstruction, the shift position, and the vehicle speed signals.

am2zzn00001587

• The operation conditions of the obstruction detection function are as follows:

×: Operates

—: Does not operate

Vehicle condition		Ultrasonic sensor
Shift position	Vehicle speed	Corner	Back
Except R position	10—15 km/h {6.3—9.3 mph} or less	—	—
Except R position	10—15 km/h {6.3—9.3 mph} or more	—	—
R position	10—15 km/h {6.3—9.3 mph} or less	×	×
R position	10—15 km/h {6.3—9.3 mph} or more	—	×

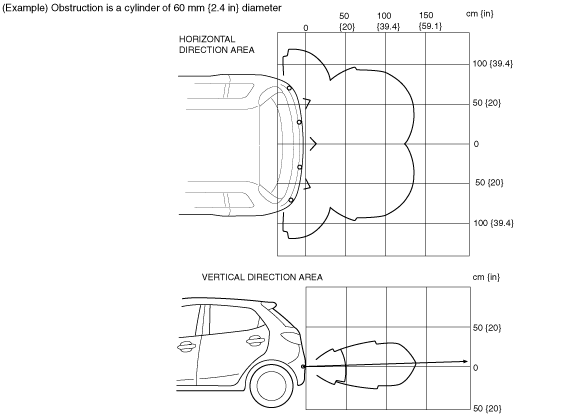

• The detection area range of the ultrasonic sensor is as follows:

am2zzn00001588

• When the operation conditions for the ultrasonic sensor are met, the parking sensor control module sounds the parking sensor buzzer according to the distance between the vehicle and obstruction as follows:

Ultrasonic sensor

Zone

Distance from obstruction

Wave pattern

Corner sensor / back sensor

Maximum short distance

Approx. 0—30 cm {0—11 in}

Short distance

Approx. 30—31 cm {11.9—12.2 in}

Intermediate distance

Approx. 32—50 cm {13—19 in}

Long distance

Approx. 51—100 cm {21.0—39.3 in}

Maximum long distance

Approx. 101—150 cm {39.8—59.0 in}

Ultrasonic sensor	Zone	Distance from obstruction	Wave pattern
Corner sensor / back sensor	Maximum short distance	Approx. 0—30 cm {0—11 in}
	Short distance	Approx. 30—31 cm {11.9—12.2 in}
	Intermediate distance	Approx. 32—50 cm {13—19 in}
	Long distance	Approx. 51—100 cm {21.0—39.3 in}
	Maximum long distance	Approx. 101—150 cm {39.8—59.0 in}
