FRONT SIDE FRAME COMPONENT REMOVAL [PANEL REPLACEMENT]


id098008741900


Symbol Mark

am2zzb00000285

Removal Procedure

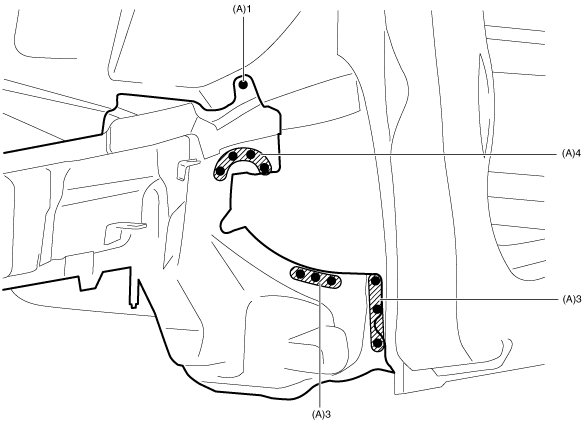

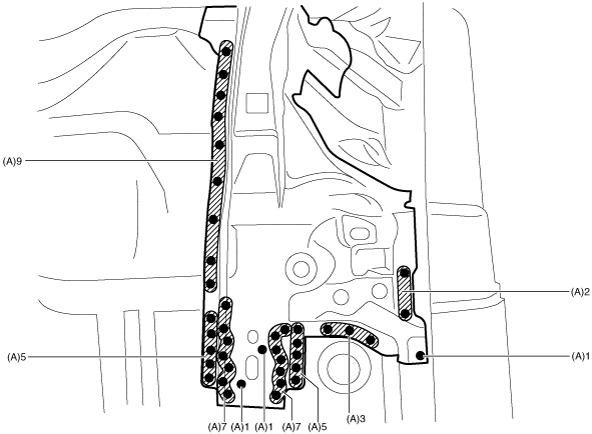

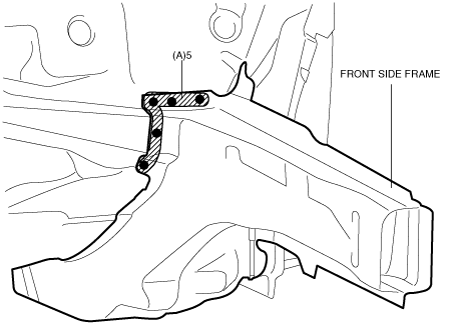

1.  Drill the 57 locations indicated by (A) shown in the figure.

am2zzb00000286
am2zzb00000287
am2zzb00000288

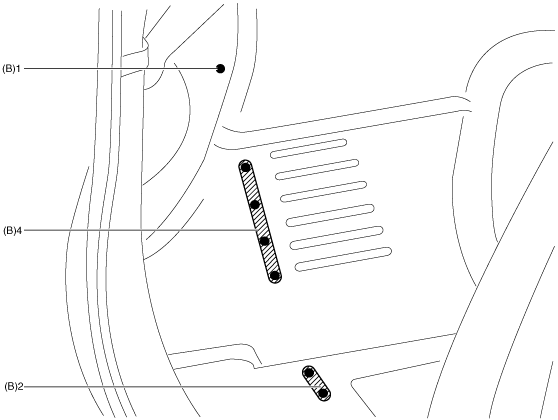

2.  Drill the 7 locations indicated by (B) shown in the figure.

am2zzb00000289

Note
Drill the 7 locations indicated by (B) from the interior.

3.  Remove the front side frame.
