ROOF PANEL REMOVAL [PANEL REPLACEMENT]


id098008744300


Symbol Mark

am2zzb00000199

Removal Procedure

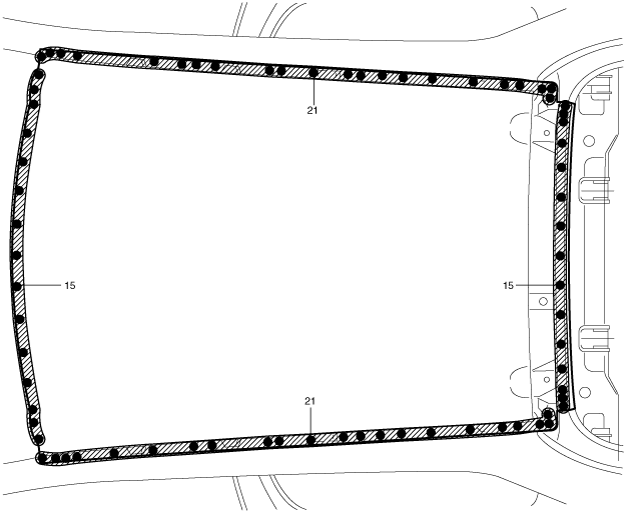

1.  Drill the 72 locations indicated shown in the figure.

am2zzb00000200

2.  Remove the roof panel.
