REAR END PANEL REMOVAL [PANEL REPLACEMENT]

id098008744500

Symbol Mark

am2zzb00000212

Removal Procedure

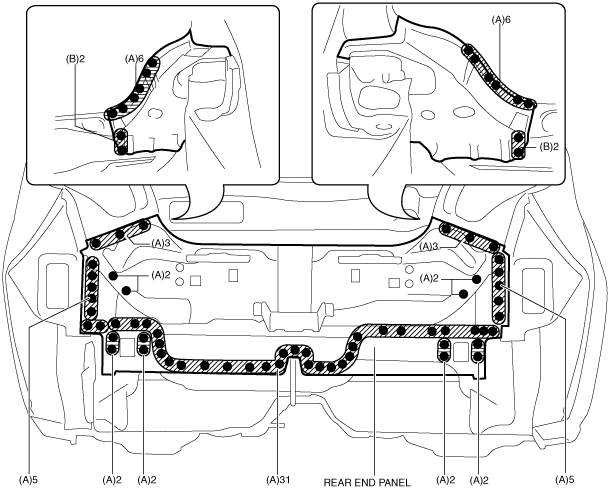

1.  Drill the 71 locations indicated by (A) and 4 locations indicated by (B) shown in the figure.

am2zzb00000213

Note

•  Drill the 4 locations indicated by (B) from the interior.

2.  Remove the rear end panel.
