REAR END PANEL INSTALLATION [PANEL REPLACEMENT]

id098008744600

Symbol Mark

am2zzb00000214

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  Apply body sealer to the joints of old and new parts for waterproofing and rust protection.

4.  After temporarily installing new parts, make sure the related parts fit properly.

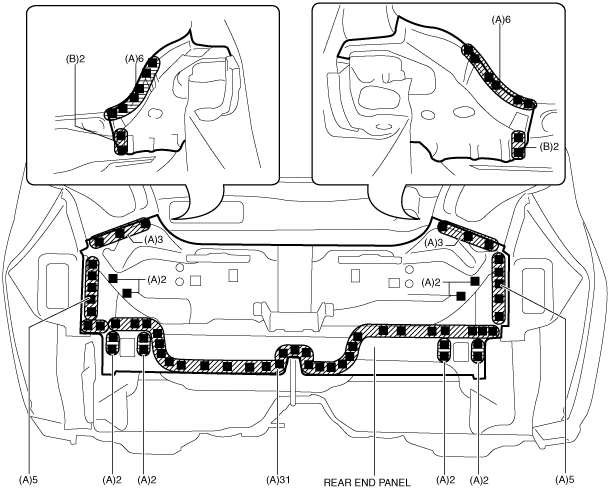

5.  Plug weld the 71 locations indicated by (A) and 4 locations indicated by (B) shown in the figure.

am2zzb00000215

Note

•  Plug weld the 4 locations indicated by (B) from the interior.
