FRONT PILLAR REMOVAL [PANEL REPLACEMENT]


id098008744700


Symbol Mark

am2zzb00000147

Removal Procedure

Caution
•  For vehicles with curtain air bags, remove the curtain air bag module to prevent damage before servicing.

5HB

am2zzb00000206

3HB

am2zzb00000207

1.  Rough cut area (A), drill the 89 locations indicated by (B) shown in the figure.

am2zzb00000395
am2zzb00000396

2.  Remove the front pillar (outer).

3.  Drill the 61 locations indicated by (C) shown in the figure.

am2zzb00000150

4.  Remove the front pillar reinforcement.

5.  Rough cut locations indicated by (D) shown in the figure.

am2zzb00000151

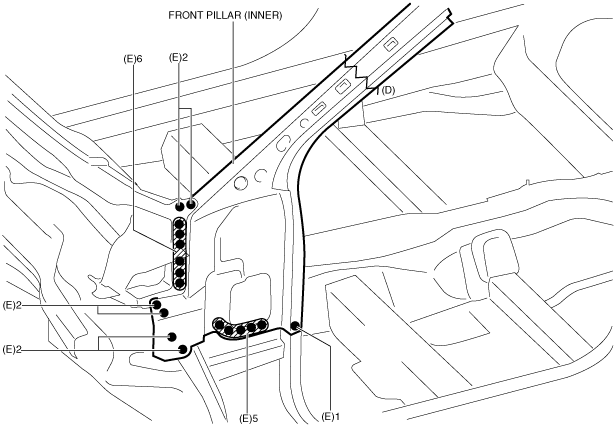

6.  Drill the 18 locations indicated by (E) shown in the figure.

7.  Remove the front pillar (inner).

8.  Remove the spot weld sealer using a disc grinder.
