REAR FENDER PANEL REMOVAL [PANEL REPLACEMENT]

id098008744900

Symbol Mark

am2zzb00000183

Removal Procedure

5HB

Caution

•  For vehicles with curtain air bags, remove the curtain air bag module to prevent damage before servicing.

am2zzb00000206

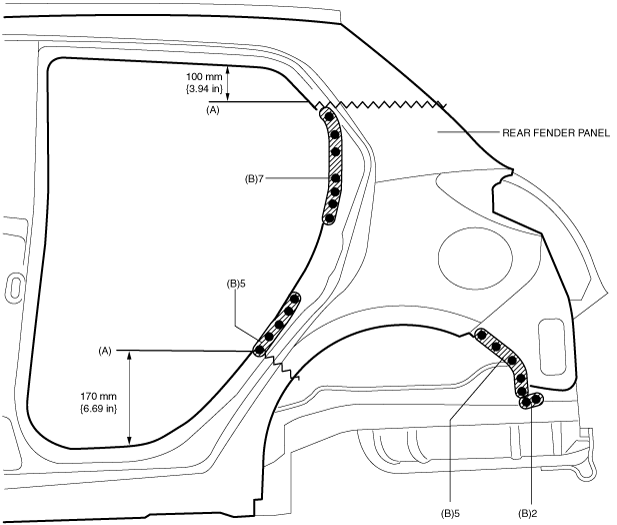

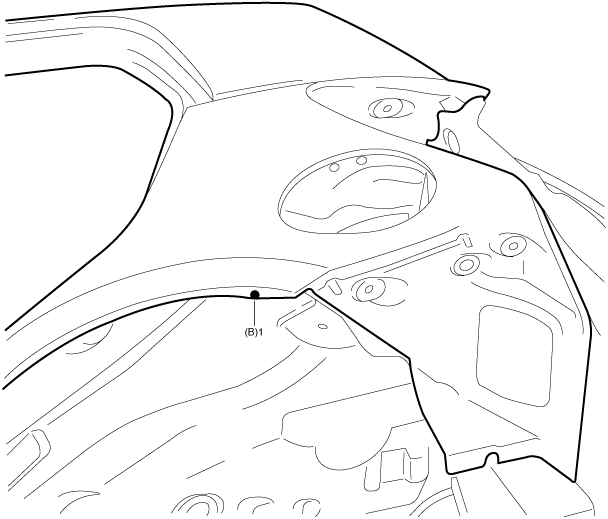

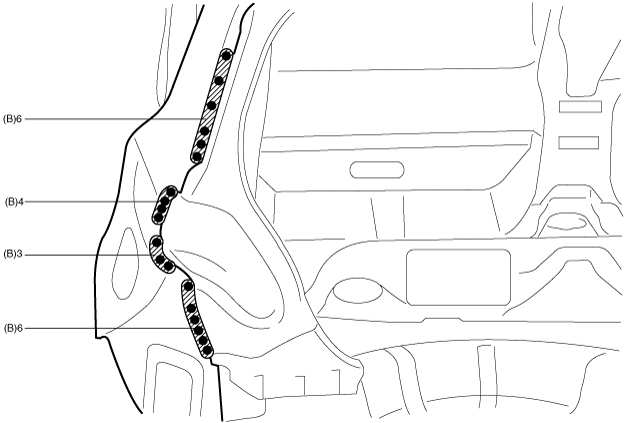

1.  Rough cut area locations indicated by (A) then drill the 39 locations indicated by (B) shown in the figure.

am2zzb00000427

am2zzb00000185

am2zzb00000186

2.  The rear fender panel and the rear pillar (inner) are joined with spot weld sealer at the tire arch line. Use a spatula to separate the rear fender panel from the rear pillar (inner), then remove the rear fender panel.

3.  Remove the rear fender panel.

3HB

Caution

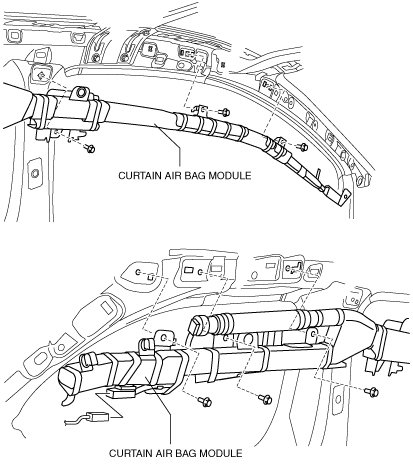

•  For vehicles with curtain air bags, remove the curtain air bag module to prevent damage before servicing.

am2zzb00000207

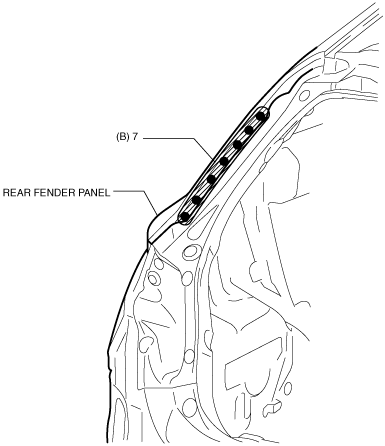

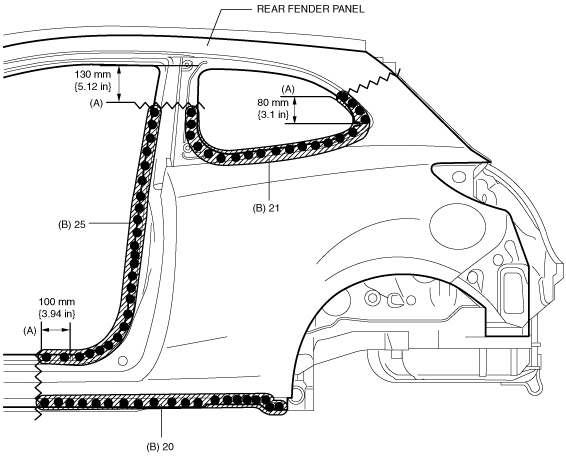

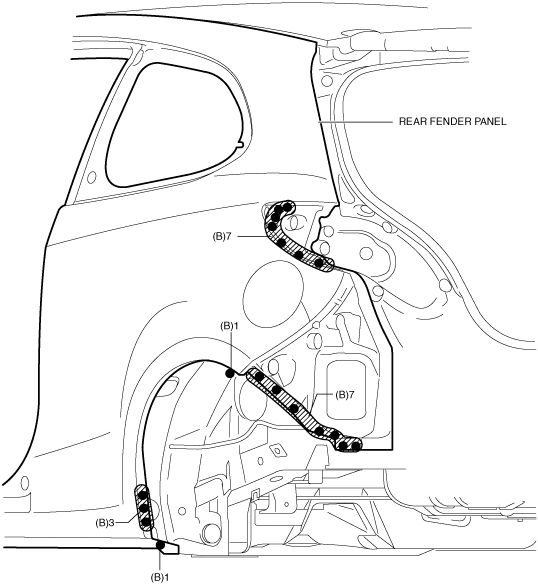

1.  Rough cut area locations indicated by (A) then drill the 92 locations indicated by (B) shown in the figure.

am2zzb00000407

am2zzb00000408

am2zzb00000409

2.  The rear fender panel and the rear pillar (inner) are joined with spot weld sealer at the tire arch line. Use a spatula to separate the rear fender panel from the rear pillar (inner), then remove the rear fender panel.

3.  Remove the rear fender panel.
