REAR FENDER PANEL INSTALLATION [PANEL REPLACEMENT]

id098008745000

Symbol Mark

am2zzb00000208

Installation Procedure

5HB

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  Before installing new parts, apply spot weld sealer to the tire arch line.

4.  After temporarily installing new parts, make sure the related parts fit properly.

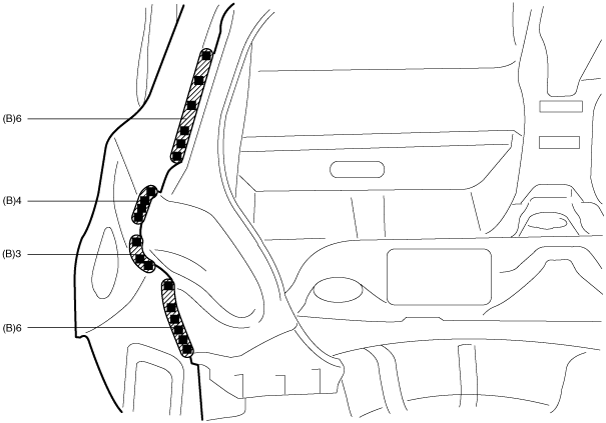

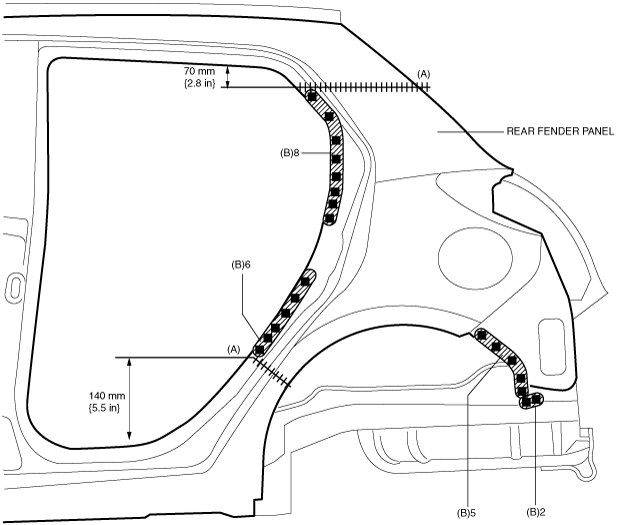

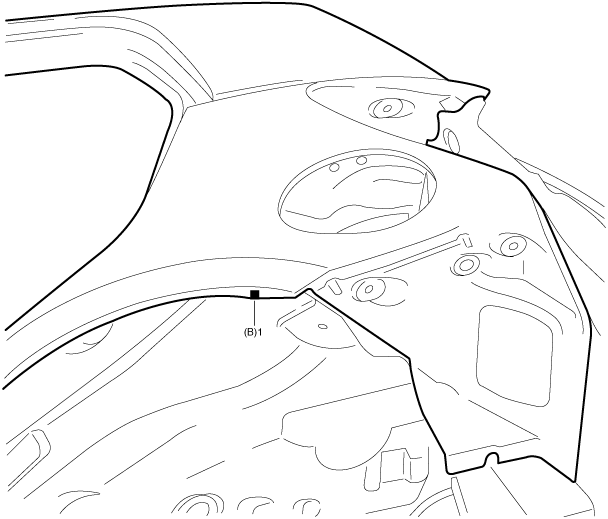

5.  Cut-and-join area locations indicated by (A) then plug weld 41 locations indicated by (B) shown in the figure.

am2zzb00000428

am2zzb00000210

am2zzb00000211

3HB

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  Before installing new parts, apply spot weld sealer to the tire arch line.

4.  After temporarily installing new parts, make sure the related parts fit properly.

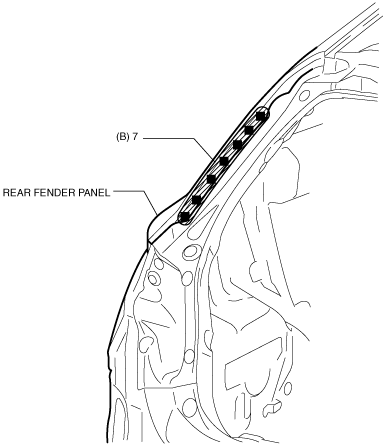

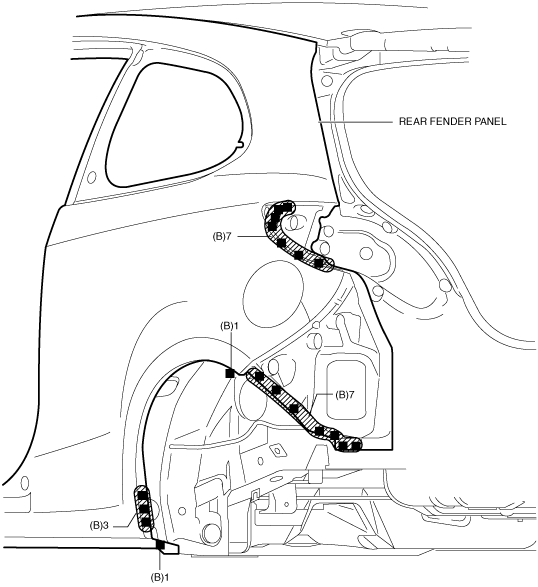

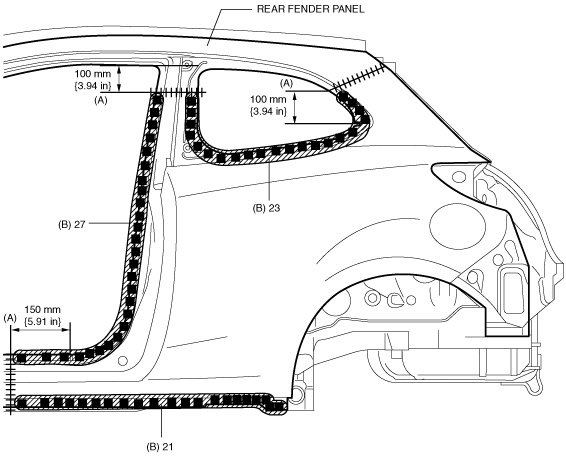

5.  Cut-and-join area locations indicated by (A) then plug weld 97 locations indicated by (B) shown in the figure.

am2zzb00000411

am2zzb00000412

am2zzb00000413
