WHEEL APRON COMPONENT REMOVAL [PANEL REPLACEMENT]

id098008746000

Symbol Mark

am2zzb00000281

Removal Procedure (LH)

1.  Drill the 20 locations indicated by (A), drill the 5 locations indicated by (B) shown in the figure.

am2zzb00000282

Note

•  Drill the 5 locations indicated by (B) from the front wheel housing.

2.  Remove the wheel apron component (LH).

Removal Procedure (RH)

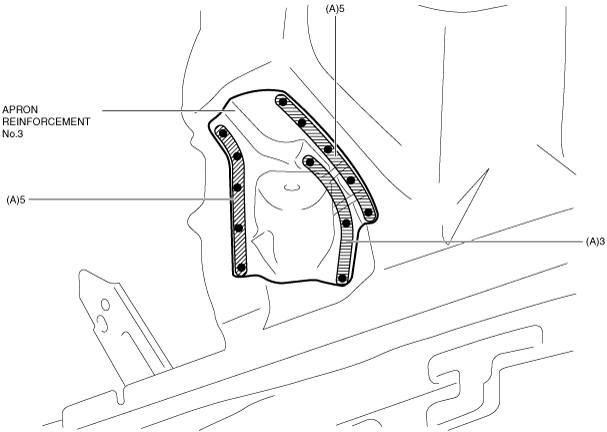

1.  Drill the 13 locations indicated by (A) shown in the figure.

am2zzb00000283

2.  Remove the apron reinforcement No.3.

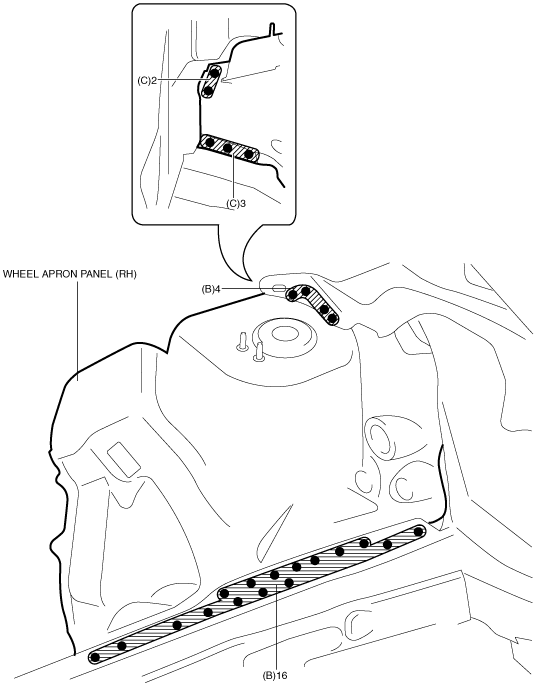

3.  Drill the 20 locations indicated by (B), drill the 5 locations indicated by (C) shown in the figure.

am2zzb00000284

Note

•  Drill the 5 locations indicated by (B) from the front wheel housing.

4.  Remove the wheel apron component (RH).
