APRON REINFORCEMENT (UPPER) REMOVAL [PANEL REPLACEMENT]

id098008800000

Symbol Mark

am2zzb00000058

Removal Procedure

1.  Drill the 5 locations indicated shown in the figure.

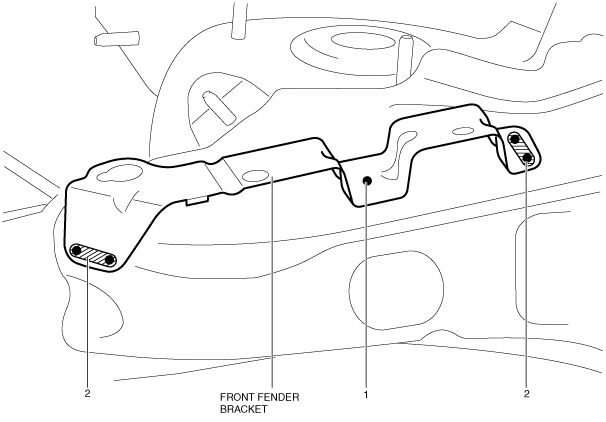

am2zzb00000059

2.  Remove the front fender bracket.

3.  Drill the 13 locations indicated shown in the figure.

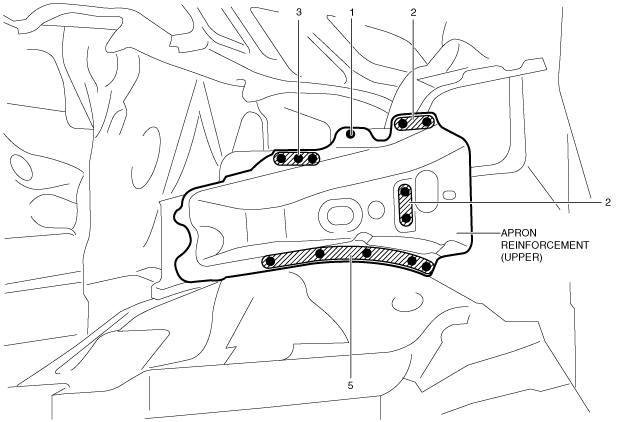

am2zzb00000060

4.  Remove the apron reinforcement (upper).
