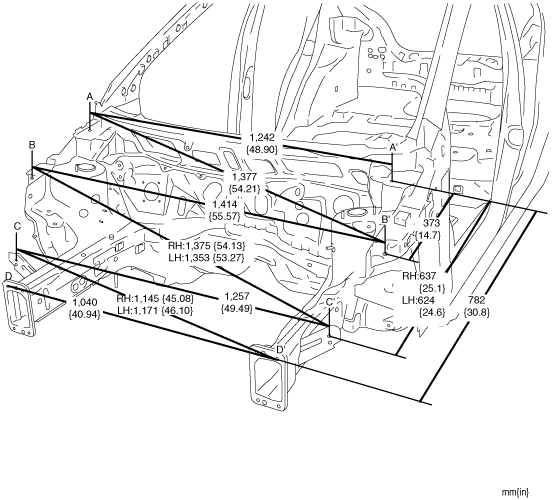

FRONT BODY STRAIGHT-LINE DIMENSIONS (2) [DIMENSIONS]

id098010740700

am2zzb00000392

am2zzb00000201

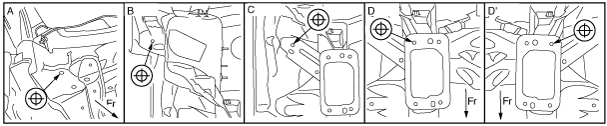

Point symbol

Designation

Hole diameter or bolt or nut size (mm {in})

A

Bonnet hinge bolt installation hole

φ10 {0.39}

B

Apron reinforcement (upper) datum hole

φ11 {0.43}

C

Front fender installation hole

RH:φ10 {0.39}

LH:φ7 {0.3}

D

Front bumper reinforcement installation hole

φ10 {0.39}

Point symbol	Designation	Hole diameter or bolt or nut size (mm {in})
A	Bonnet hinge bolt installation hole	φ10 {0.39}
B	Apron reinforcement (upper) datum hole	φ11 {0.43}
C	Front fender installation hole	RH:φ10 {0.39} LH:φ7 {0.3}
D	Front bumper reinforcement installation hole	φ10 {0.39}
