FRONT BODY STRAIGHT-LINE DIMENSIONS (3) [DIMENSIONS]
id098010740800

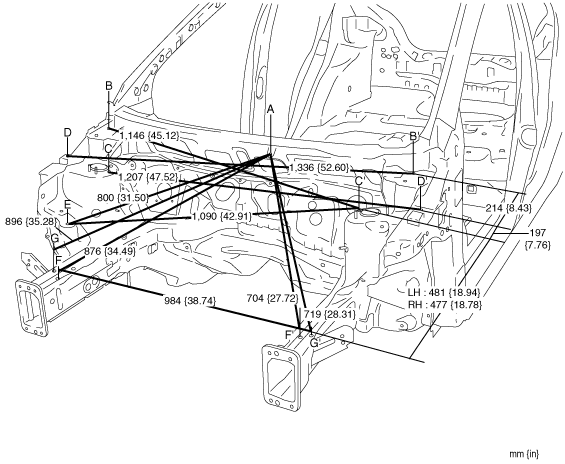

L.H.D.
am2zzb00000421
|
am2zzb00000422
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Front wiper installation hole
|
φ6 {0.2}
|
|
B
|
Bonnet hinge installation hole
|
φ10 {0.39}
|
|
C
|
Suspension housing (upper) datum hole
|
φ11 {0.43}
|
|
D
|
Front fender panel installation hole
|
φ7 {0.3}
|
|
E
|
Apron reinforcement No.3 datum hole
|
φ12 {0.47}
|
|
F
|
Front side frame (inner) datum hole
|
RH:φ9 {0.4}
LH:φ7 {0.3}
|
|
G
|
Front side frame (outer) datum hole
|
RH:φ7 {0.3}
LH:φ10 {0.39}
|

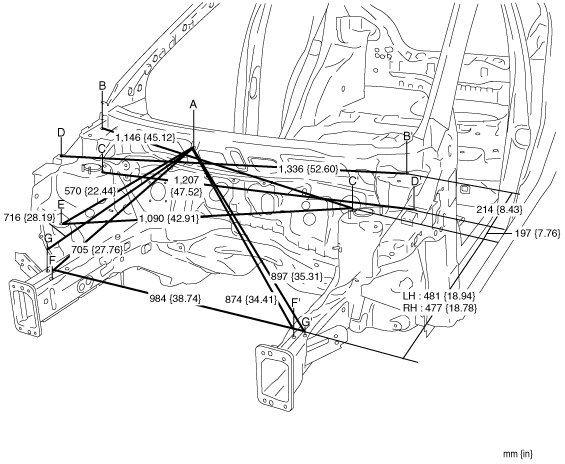

R.H.D.
am2zzb00000423
|
am2zzb00000424
|
|

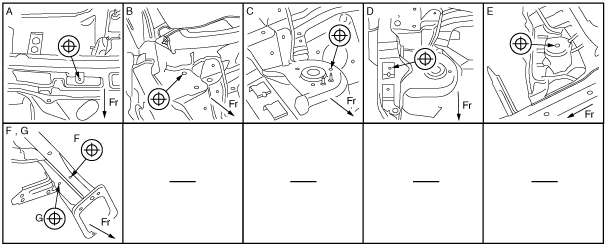

Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Front wiper installation hole
|
φ6 {0.2}
|
|
B
|
Bonnet hinge installation hole
|
φ10 {0.39}
|
|
C
|
Suspension housing (upper) datum hole
|
φ11 {0.43}
|
|
D
|
Front fender panel installation hole
|
φ7 {0.3}
|
|
E
|
Apron reinforcement No.3 datum hole
|
φ12 {0.47}
|
|
F
|
Front side frame (inner) datum hole
|
RH:φ9 {0.4}
LH:φ7 {0.3}
|
|
G
|
Front side frame (outer) datum hole
|
RH:φ7 {0.3}
LH:φ10 {0.39}
|
