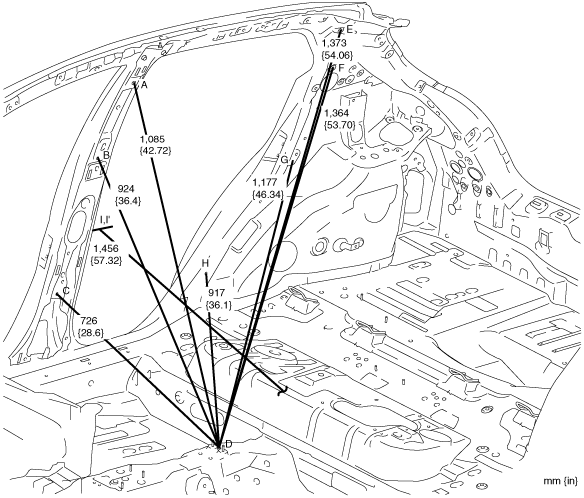

ROOM STRAIGHT-LINE DIMENSIONS (2) [DIMENSIONS]
id098010743400
5HB
am2zzb00000271
|

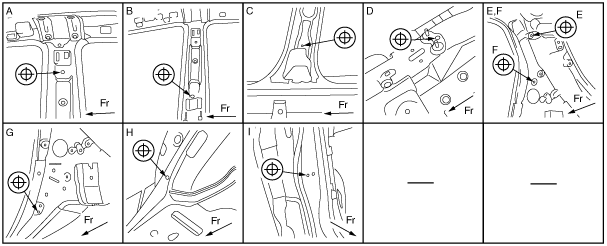

am2zzb00000267
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Seat belt anchor adjuster installation hole
|
φ12 {0.47}
|
|
B
|
B-pillar upper trim installation hole
|
φ9 {0.4}
|
|
C
|
Front seat belt retractor installation hole
|
φ7 {0.3}
|
|
D
|
Tunnel reinforcement datum hole
|
φ12 {0.47}
|
|
E
|
Rear pillar (inner) datum hole
|
φ7 {0.3}
|
|
F
|
Rear pillar (inner) datum hole
|
φ7.2 {0.28}
|
|
G
|
Rear pillar (inner) datum hole
|
φ7.2 {0.28}
|
|
H
|
Wheel house (inner) datum hole
|
φ7.2 {0.28}
|
|
I
|
Rear door checker installation hole
|
φ4 {0.2}
|
3HB

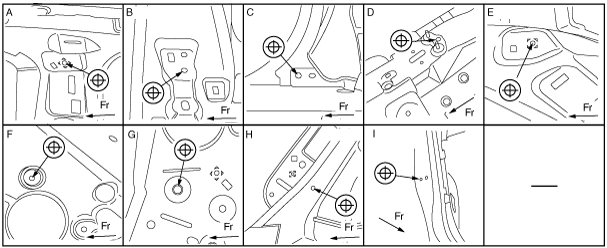

am2zzb00000268
|
am2zzb00000237
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Curtain air bag module installation hole
|
φ7 {0.3}
|
|
B
|
B-pillar (inner) datum hole
|
φ9 {0.4}
|
|
C
|
Trunk side trim installation hole
|
φ8.6 {0.34}
|
|
D
|
Tunnel reinforcement datum hole
|
φ12 {0.47}
|
|
E
|
Curtain air bag module installation hole
|
φ7 {0.3}
|
|
F
|
Wiring harness installation hole
|
φ7.2 {0.28}
|
|
G
|
Rear pillar (inner) datum hole
|
φ12 {0.47}
|
|
H
|
Wheel house (inner) datum hole
|
φ7.2 {0.28}
|
|
I
|
Front door striker installation hole
|
φ13 {0.51}
|
