ROOM STRAIGHT-LINE DIMENSIONS (3) [DIMENSIONS]
id098010746200
5HB
am2zzb00000368
|
am2zzb00000239
|
|

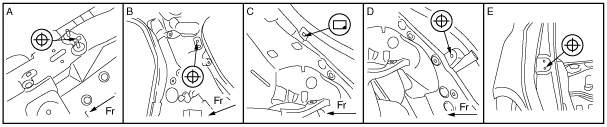

Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Tunnel reinforcement datum hole
|
φ12 {0.47}
|
|
B
|
C-pillar trim installation hole
|
φ8.6 {0.34}
|
|
C
|
Rear pillar (inner) square hole
|
8×8
{0.3×0.3}
|
|
D
|
Trunk side trim installation hole
|
φ8.6 {0.34}
|
|
E
|
Rear door striker installation hole
|
φ13 {0.51}
|

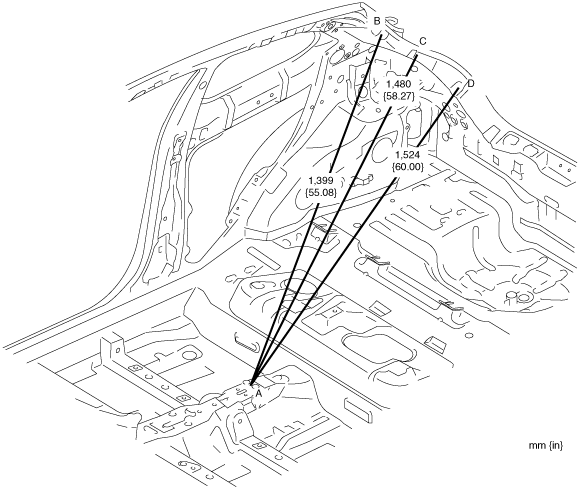

3HB
am2zzb00000242
|
am2zzb00000241
|
|

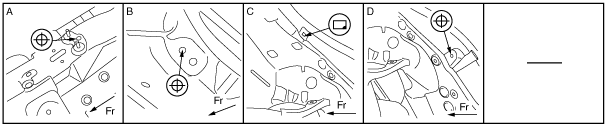

Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Tunnel reinforcement datum hole
|
φ12 {0.47}
|
|
B
|
Trunk side trim installation hole
|
φ8.4 {0.33}
|
|
C
|
Trunk side trim installation square hole
|
8×8
{0.3×0.3}
|
|
D
|
Rear pillar (inner) datum hole
|
φ8.6 {0.34}
|
