REAR BODY STRAIGHT-LINE DIMENSIONS (1) [DIMENSIONS]

id098010746300

am2zzb00000415

adejjb00000005

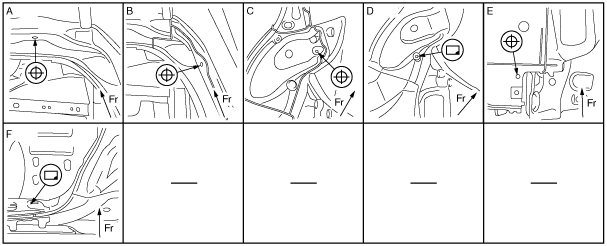

Point symbol

Designation

Hole diameter or bolt or nut size (mm {in})

A

Liftgate hinge installation hole

φ14 {0.55}

B

Liftgate dumper installation hole

φ10 {0.39}

C

Corner plate datum hole

φ8 {0.3}

D

Corner plate square hole

8×8

{0.3×0.3}

E

Rear end panel datum hole

φ8.5 {0.33}

F

Rear end trim installation square hole

7×27

{0.3×1.0}

Point symbol	Designation	Hole diameter or bolt or nut size (mm {in})
A	Liftgate hinge installation hole	φ14 {0.55}
B	Liftgate dumper installation hole	φ10 {0.39}
C	Corner plate datum hole	φ8 {0.3}
D	Corner plate square hole	8×8 {0.3×0.3}
E	Rear end panel datum hole	φ8.5 {0.33}
F	Rear end trim installation square hole	7×27 {0.3×1.0}
