CONSTRUCTION STANDARD VALUES [CONSTRUCTION STANDARD VALUES]

id0980c0740300

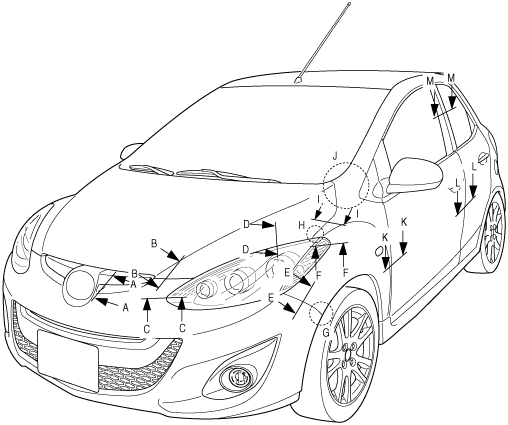

FRONT VIEW


5HB

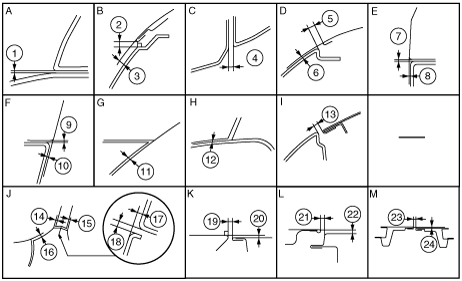

am2zzb00000352
am2zzb00000204

No.

Measurement part

Standard values (mm) {in}

Maximum values (mm) {in}

Minimum values (mm) {in}

Side by difference (mm) {in}
A
1
1.0
{0.039}
2.5
{0.098}
0.5
{0.20}
1.5
{0.059}
B
2
4.5
{0.18}
6.0
{0.24}
3.0
{0.12}
-
3
2.9
{0.114}
4.9
{0.193}
0.9
{0.04}
-
C
4
3.0
{0.12}
5.5
{0.22}
0.5
{0.02}
2.0
{0.079}
D
5
4.5
{0.18}
6.1
{0.24}
2.9
{0.114}
2.5
{0.098}
6
1.0
{0.039}
2.8
{0.11}
-0.8
{-0.03}
-
E
7
0
1.0
{0.039}
-
-
8
0.5
{0.02}
1.2
{0.047}
-0.2
{-0.008}
-
F
9
1.5
{0.059}
2.9
{0.114}
0.1
{0.004}
1.3
{0.051}
10
1.0
{0.039}
2.4
{0.094}
-0.4
{-0.02}
-
G
11
0
2.0
{0.079}
-2.0
{-0.79}
-
H
12
0
1.0
{0.39}
-1.0
{-0.39}
-
I
13
3.5
{0.14}
4.5
{0.18}
2.5
{0.098}
1.0
{0.039}
J
14
0
1.0
{0.039}
-
-
15
0
1.0
{0.039}
-
-
16
0
1.5
{0.059}
-1.5
{-0.059}
-
17
0
1.5
{0.059}
-1.5
{-0.059}
-
18
2.0
{0.079}
3.2
{0.13}
0.8
{0.03}
1.2
{0.047}
K
19
4.0
{0.16}
5.0
{0.20}
3.0
{0.12}
1.0
{0.039}
20
0
1.0
{0.039}
-1.0
{-0.039}
-
L
21
4.0
{0.16}
5.0
{0.20}
3.0
{0.12}
1.0
{0.039}
22
0
1.0
{0.039}
-1.0
{-0.039}
-
M
23
4.5
{0.18}
6.0
{0.24}
3.0
{0.12}
1.5
{0.059}
24
0
1.5
{0.059}
-
-

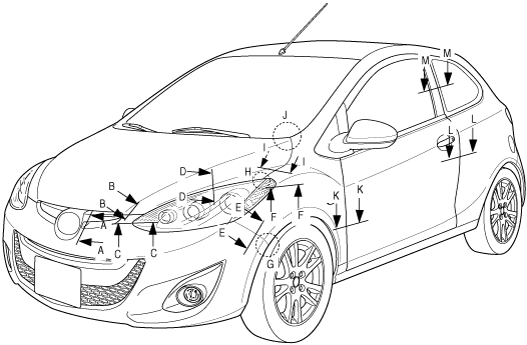

3HB

am2zzb00000353

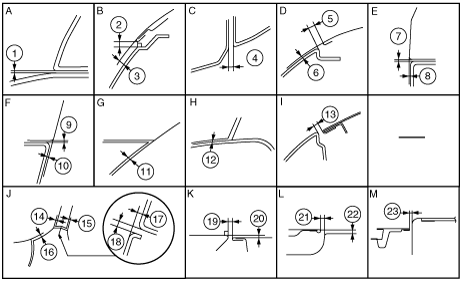

am2zzb00000244

No.

Measurement part

Standard values (mm) {in}

Maximum values (mm) {in}

Minimum values (mm) {in}

Side by difference (mm) {in}
A
1
1.0
{0.039}
2.5
{0.098}
0.5
{0.20}
1.5
{0.059}
B
2
4.5
{0.18}
6.0
{0.24}
3.0
{0.12}
-
3
2.9
{0.114}
4.9
{0.193}
0.9
{0.04}
-
C
4
3.0
{0.12}
5.5
{0.22}
0.5
{0.02}
2.0
{0.079}
D
5
4.5
{0.18}
6.1
{0.24}
2.9
{0.114}
2.5
{0.098}
6
1.0
{0.039}
2.8
{0.11}
-0.8
{-0.03}
-
E
7
0
1.0
{0.039}
-
-
8
0.5
{0.02}
1.2
{0.047}
-0.2
{-0.008}
-
F
9
1.5
{0.059}
2.9
{0.114}
0.1
{0.004}
1.3
{0.051}
10
1.0
{0.039}
2.4
{0.094}
-0.4
{-0.02}
-
G
11
0
2.0
{0.079}
-2.0
{-0.79}
-
H
12
0
1.0
{0.39}
-1.0
{-0.39}
-
I
13
3.5
{0.14}
4.5
{0.18}
2.5
{0.098}
1.0
{0.039}
J
14
0
1.0
{0.039}
-
-
15
0
1.0
{0.039}
-
-
16
0
1.5
{0.059}
-1.5
{-0.059}
-
17
0
1.5
{0.059}
-1.5
{-0.059}
-
18
2.0
{0.079}
3.2
{0.13}
0.8
{0.03}
1.2
{0.047}
K
19
4.0
{0.16}
5.0
{0.20}
3.0
{0.12}
1.0
{0.039}
20
0
1.0
{0.039}
-1.0
{-0.039}
-
L
21
4.0
{0.16}
5.0
{0.20}
3.0
{0.12}
1.0
{0.039}
22
0
1.0
{0.039}
-1.0
{-0.039}
-
M
23
4.5
{0.18}
6.5
{0.26}
2.5
{0.098}
1.8
{0.071}


REAR VIEW

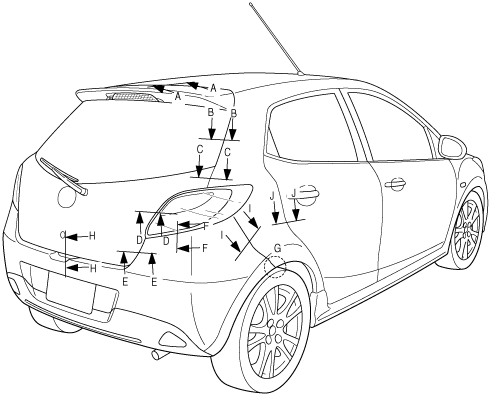

5HB

adejjb00000040

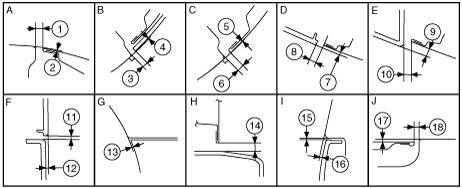

am2zzb00000280

No.

Measurement part

Standard values (mm) {in}

Maximum values (mm) {in}

Minimum values (mm) {in

Side by difference (mm) {in}
A
1
6.0
{0.24}
7.0
{0.28}
5.0
{0.20}
1.2
{0.047}
2
-1.0
{-0.039}
0
-2.0
{-0.079}
-
B
3
4.5
{0.18}
6.5
{0.26}
2.5
{0.098}
2.0
{0.079}
4
2.0
{0.079}
4.2
{0.17}
-0.2
{-0.008}
-
C
5
0.5
{0.02}
1.7
{0.067}
-0.7
{-0.03}
-
6
4.0
{0.16}
5.2
{0.20}
2.8
{0.11}
1.2
{0.047}
D
7
0.5
{0.02}
2.2
{0.087}
-1.2
{-0.047}
-
8
4.0
{0.16}
5.7
{0.22}
2.3
{0.091}
2.0
{0.079}
E
9
0.5
{0.02}
2.5
{0.098}
1.5
{0.059}
-
10
4.0
{0.16}
6.0
{0.24}
2.0
{0.079}
-
F
11
1.0
{0.039}
2.5
{0.098}
-0.5
{-0.02}
-
12
0
1.5
{0.059}
-1.5
{-0.059}
-
G
13
0
2.0
{0.079}
-2.0
{-0.079}
-
H
14
6.0
{0.24}
8.0
{0.31}
4.0
{0.16}
-
I
15
0
1.0
{0.039}
-
-
16
0.5
{0.02}
1.2
{0.047}
0.2
{0.008}
1.7
{0.067}
J
17
0
1.0
{0.039}
-1.0
{-0.039}
-
18
4.0
{0.16}
5.0
{0.20}
3.0
{0.12}
1.0
{0.039}

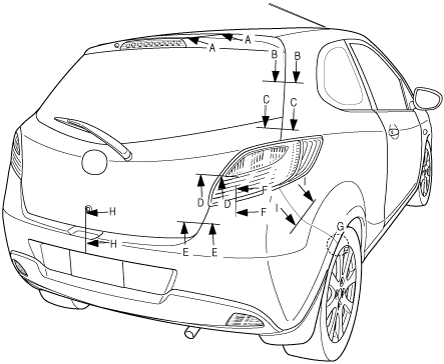

3HB

am2zzb00000245

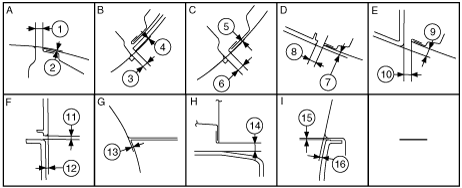

am2zzb00000246

No.

Measurement part

Standard values (mm) {in}

Maximum values (mm) {in}

Minimum values (mm) {in

Side by difference (mm) {in}
A
1
6.0
{0.24}
7.0
{0.28}
5.0
{0.20}
1.2
{0.047}
2
-1.0
{-0.039}
0
-2.0
{-0.079}
-
B
3
4.5
{0.18}
6.5
{0.26}
2.5
{0.098}
2.0
{0.079}
4
2.0
{0.079}
4.2
{0.17}
-0.2
{-0.008}
-
C
5
0.5
{0.02}
1.7
{0.067}
-0.7
{-0.03}
-
6
4.0
{0.16}
5.2
{0.20}
2.8
{0.11}
1.2
{0.047}
D
7
0.5
{0.02}
2.2
{0.087}
-1.2
{-0.047}
-
8
4.0
{0.16}
5.7
{0.22}
2.3
{0.091}
2.0
{0.079}
E
9
0.5
{0.02}
2.5
{0.098}
1.5
{0.059}
-
10
4.0
{0.16}
6.0
{0.24}
2.0
{0.079}
-
F
11
1.0
{0.039}
2.5
{0.098}
-0.5
{-0.02}
-
12
0
1.5
{0.059}
-1.5
{-0.059}
-
G
13
0
2.0
{0.079}
-2.0
{-0.079}
-
H
14
6.0
{0.24}
8.0
{0.31}
4.0
{0.16}
-
I
15
0
1.0
{0.039}
-
-
16
0.5
{0.02}
1.2
{0.047}
0.2
{0.008}
1.7
{0.067}
