TRANSAXLE CASE AND CLUTCH HOUSING ASSEMBLY
id051500169900
1. Perform the differential preload adjustment and select a shim of the appropriate thickness. (See BEARING PRELOAD ADJUSTMENT.)

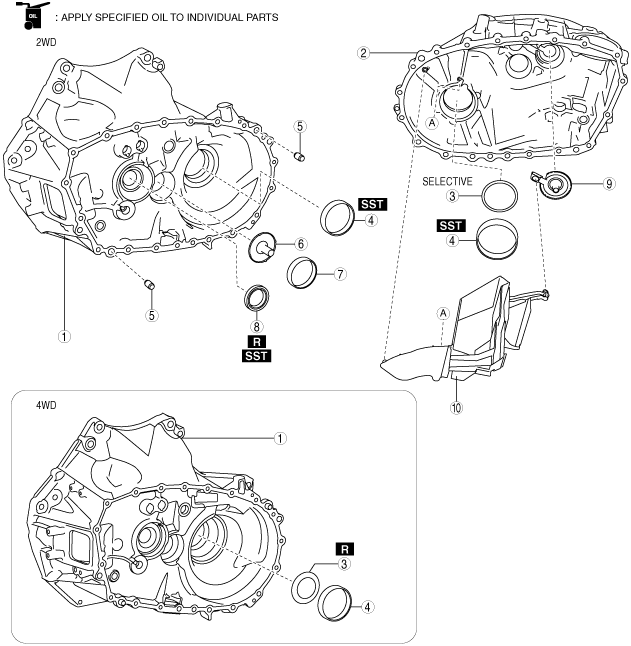

2. Assemble the transaxle case component and clutch housing component in the order shown in the figure.
bc62zm00000012
|
|
1
|
Clutch housing
|
|
2
|
Transaxle case
|
|
3
|
Shim
|
|
4
|
Bearing outer race (differential)
|
|
5
|
Dowel pin
|
|
6
|
Funnel
|
|
7
|
Bearing outer race
|
|
8
|
Oil seal
(See Oil Seal Assembly Note.)
|
|
9
|
Funnel
|
|
10
|
Oil path
|
Bearing Outer Race (Differential) Assembly Note
1. Assemble the bearing outer race (differential) to the clutch housing using the SSTs.
2WD
bc61um00000137
|
4WD
bc62zm00000043
|
2. Assemble the bearing outer race (differential) to the transaxle case using the SSTs.
bc62zm00000044
|
Oil Seal Assembly Note
1. Assemble the oil seal using the SST.
bc61um00000164
|
