SHIFT CONTROL MODULE ASSEMBLY
id051500170200

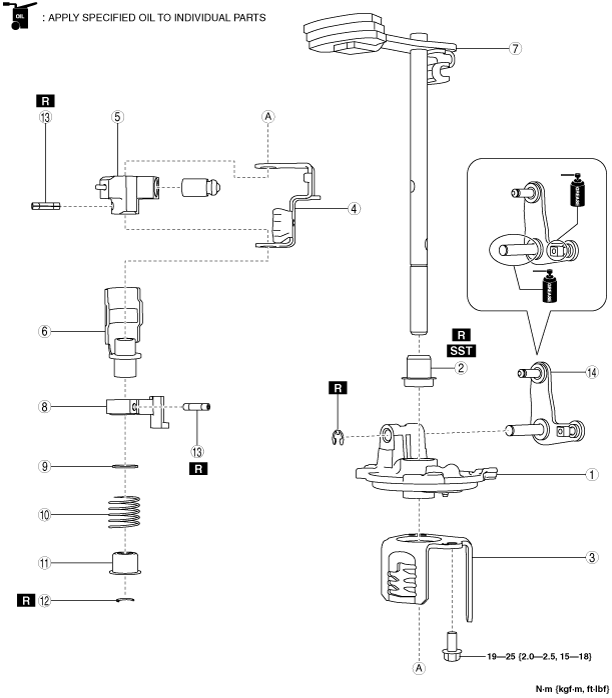

1. Assemble the shift control module using the procedure shown in the figure.
bc62zm00000019
|
|
1
|
Control case
|
|
2
|
Oil seal
(See Oil Seal Assembly Note.)
|
|
3
|
Guide plate
|
|
4
|
Holder plate
|
|
5
|
Control lever component
|
|
6
|
Interlock sleeve
|
|
7
|
Shift lever
|
|
8
|
Switch pin
|
|
9
|
Washer
|
|
10
|
Spring
|
|
11
|
Spring seat
|
|
12
|
Clip
(See Clip Assembly Note.)
|
|
13
|
Pin
(See Pin Assembly Note.)
|
|
14
|
Selector lever
|
Oil Seal Assembly Note
1. Assemble a new oil seal to the control case using the SST.
bc61um00000110
|
Clip Assembly Note
1. Move the guide pin to the position shown in the figure for the guide plate.
bc62zm00000048
|
2. Push down the spring seat by hand.
3. Assemble the clip.
Pin Assembly Note
1. Secure the shift control module in a vise.
bc62zm00000020
|
2. Align the switch pin and interlock sleeve markings.
bc62zm00000021
|
3. Assemble a new pin to the switch pin using a punch.
bc62zm00000022
|
4. Move the control lever component to set the guide pin to the 5GR position of the guide plate.
bc62zm00000023
|
5. Assemble a new pin to the control lever component using a punch.
bc62zm00000049
|
