ENGINE REAR COVER [SKYACTIV-X 2.0]

id0110hf009000

Purpose, Function

• The engine rear cover covers the rear of the engine to prevent engine oil spillage, noise leakage, and foreign matter penetration.

Construction

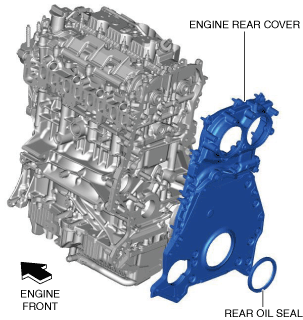

• The engine rear cover is installed to the rear of the engine.

atsuzn00000854

• The lightweight engine rear cover is made of aluminum alloy with excellent noise absorption.

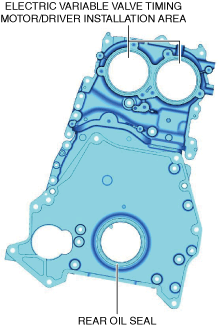

• The engine rear cover has the following parts shown in the figure.

atsuzn00000802
