CAMSHAFT [SKYACTIV-D 1.8]

id0110t1001400


Purpose, Function

•  The camshaft is rotated by receiving the rotation force of the crankshaft via the timing chain. The valve is opened and closed according to the cam shape at this time.

Construction

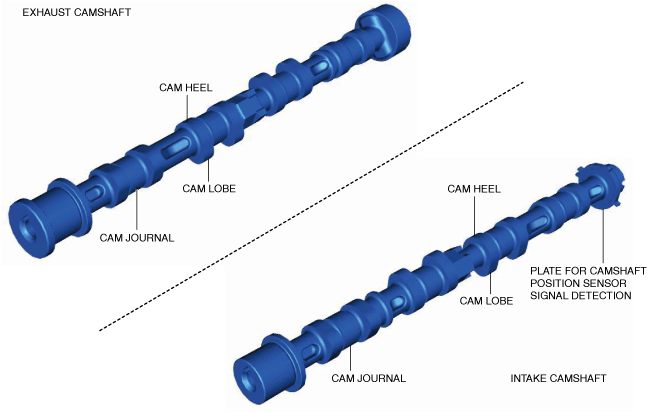

•  The camshaft is located on the cylinder head.
•  The cam has been induction hardened. As a result, resistance to abrasion has been enhanced.
atsuzn00000070

Valve timing

am3zzn00009075

Item

Specification
Valve timing
IN
Open
(°)
BTDC 3
Closed
(°)
ABDC 25
EX
Open
(°)
BBDC 40
Closed
(°)
ATDC 8
