DRIVE BELT INSPECTION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))]

id0110u1801500

Generator Drive Belt

Note

•  The generator drive belt deflection/tension inspection is not necessary with the adoption of the drive belt auto tensioner.

•  The generator drive belt does not have to be replaced because fraying of the generator drive belt does not affect the performance.

ac5uuw00009241

1.  Visually inspect or feel that there is no wear, damage, or cracking on the inside and sides of the entire belt.

ac5uuw00009242

•  Even if there is a little wear, damage, or cracking, replace the generator drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

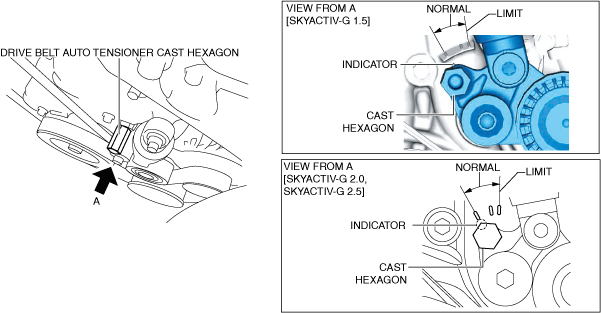

2.  Verify that the indicator part of the cast hexagon on the drive belt auto tensioner is within the normal range.

Without Mazda M Hybrid

am3zzw00032424

With Mazda M Hybrid

am3zzw00029898

•  If it exceeds the limit, replace the generator drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

Water Pump Drive Belt

Note

•  The water pump drive belt deflection/tension inspection is not necessary with the adoption of the stretch-type water pump drive belt.

1.  Visually inspect or feel that there is no wear, damage, or cracking on the inside and sides of the entire belt.

•  Even if there is a little wear, damage, or cracking, replace the water pump drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

2.  Start the engine to verify that abnormal noise does not occur.

•  If abnormal noise occurs, replace the water pump drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
