LUBRICATION SYSTEM [SKYACTIV-X 2.0]

id0111hf002100


Outline

•  Pressure loss is reduced by optimizing the oil passage.
•  With the adoption of the chain drive type oil pump, oil pump drive force has been reduced.
•  With the adoption of the oil shower pipe, sliding resistance has been reduced.
•  With the adoption of the engine oil solenoid valve, oil pump discharge pressure can be controlled (engine oil variable control).

Structural View

atsuzn00000941

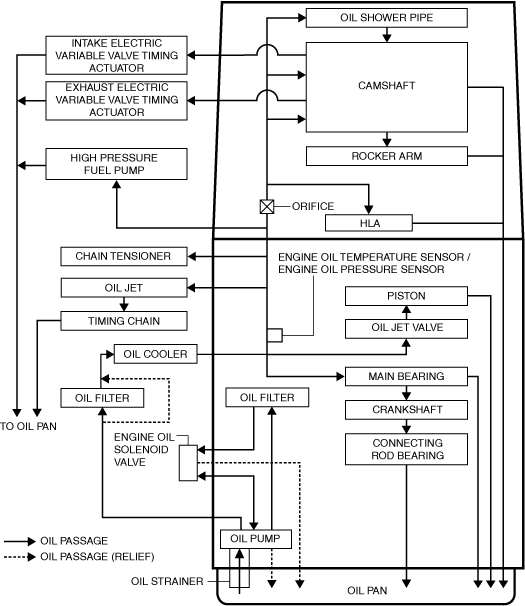

Flow View

atsuzn00000772

Structure

•  Consists of the following parts:

Part name

Reference
Oil filter
―
Oil pan
―
Oil strainer
―
Oil pump
(See OIL PUMP [SKYACTIV-X 2.0].)
Oil jet valve
(See OIL JET VALVE [SKYACTIV-X 2.0].)
Engine oil solenoid valve
(See ENGINE OIL SOLENOID VALVE [SKYACTIV-X 2.0].)
Oil shower pipe
(See OIL SHOWER PIPE [SKYACTIV-X 2.0].)
