OIL COOLER REMOVAL/INSTALLATION [SKYACTIV-X 2.0]

id0111hf800800

Replacement part

Warning

•  Hot engines and engine oil can cause severe burns. Turn off the engine and wait until it and the engine oil have cooled.

•  A vehicle that is lifted but not securely supported on safety stands is dangerous. It can slip or fall, causing death or serious injury. Never work around or under a lifted vehicle if it is not securely supported on safety stands.

•  Continuous exposure to USED engine oil has caused skin cancer in laboratory mice. Protect your skin by washing with soap and water immediately after working with engine oil.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

3.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-X 2.0].)

4.  Remove the seal plate. (See OIL PAN REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

5.  Remove in the order indicated in the table.

6.  Install in the reverse order of removal.

7.  Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-X 2.0].)

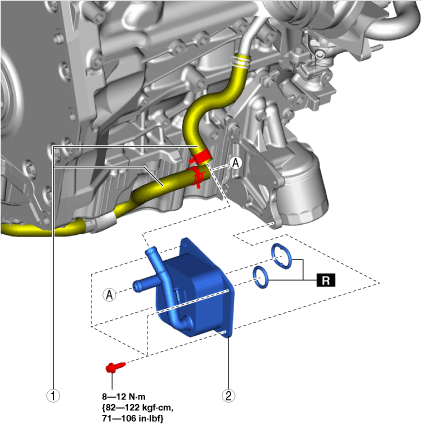

am3zzw00035613

1	Water hose
2	Oil cooler (See Oil Cooler Installation Note.)

Oil Cooler Installation Note

1.  Tighten the bolts in the order shown in the figure.

am3zzw00035614
