•  The oil shower pipe injects engine oil to lubricate the contact points of the cam and rocker arm. As a result, wear resistance of sliding part is reduced.

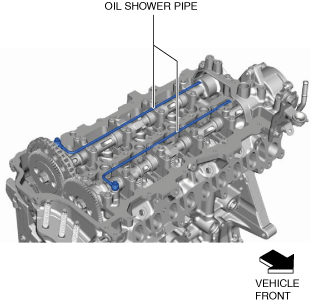

•  The oil shower pipe is located on the camshaft cap.

•  The oil shower pipe has engine oil injection holes at the top of the camshaft.

atsuzn00000046

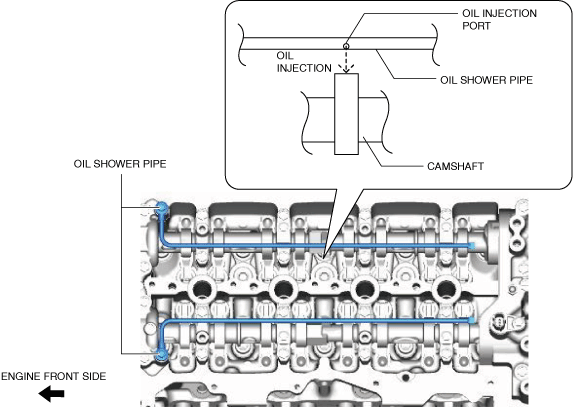

•  The oil shower pipe utilizes the engine oil injection holes at the top of the camshaft.

atsuzn00000047

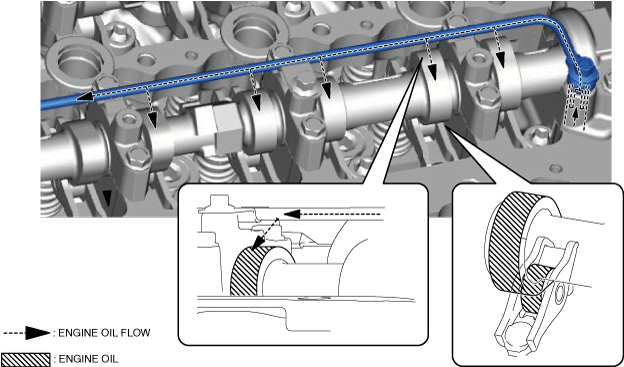

•  The oil shower pipe injects engine oil from the engine oil injection holes using hydraulic pressure.

atsuzn00000048
