LUBRICATION SYSTEM LOCATION INDEX [SKYACTIV-D 1.8]

id0111t1800100

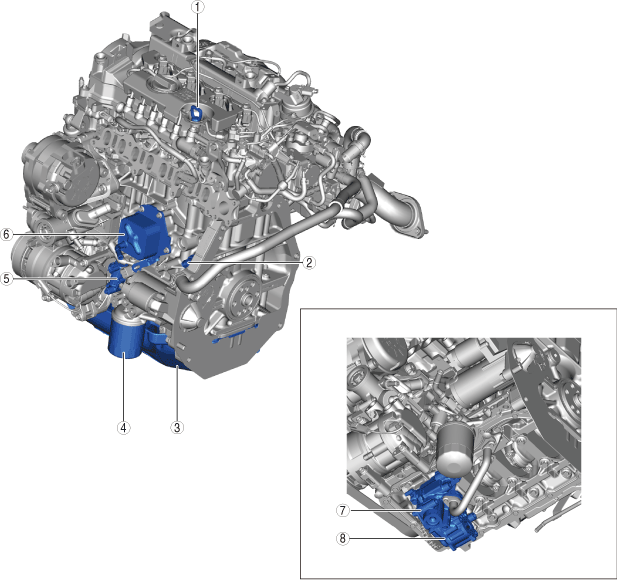

am3zzw00029900

1	Dipstick (See ENGINE OIL LEVEL INSPECTION [SKYACTIV-D 1.8].) (See ENGINE OIL REPLACEMENT [SKYACTIV-D 1.8].)
2	Engine oil temperature sensor/engine oil pressure sensor (See OIL PRESSURE INSPECTION [SKYACTIV-D 1.8].)
3	Oil pan (See OIL PAN REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
4	Engine oil solenoid valve (See ENGINE OIL SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See ENGINE OIL SOLENOID VALVE INSPECTION [SKYACTIV-D 1.8].)
5	Oil filter (See OIL FILTER REPLACEMENT [SKYACTIV-D 1.8].)
6	Oil cooler (See OIL COOLER REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
7	Oil pump (See OIL PUMP REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
8	Oil strainer (See OIL PUMP REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
