LUBRICATION SYSTEM [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))]

id0111u1002100


Outline

•  Pressure loss is reduced by optimizing the oil passage.
•  With the adoption of the chain drive type oil pump, oil pump drive force has been reduced.
•  With the adoption of the oil shower pipe, sliding resistance has been reduced.
•  With the adoption of the engine oil solenoid valve, oil pump discharge pressure can be controlled (engine oil variable control).

Structural View

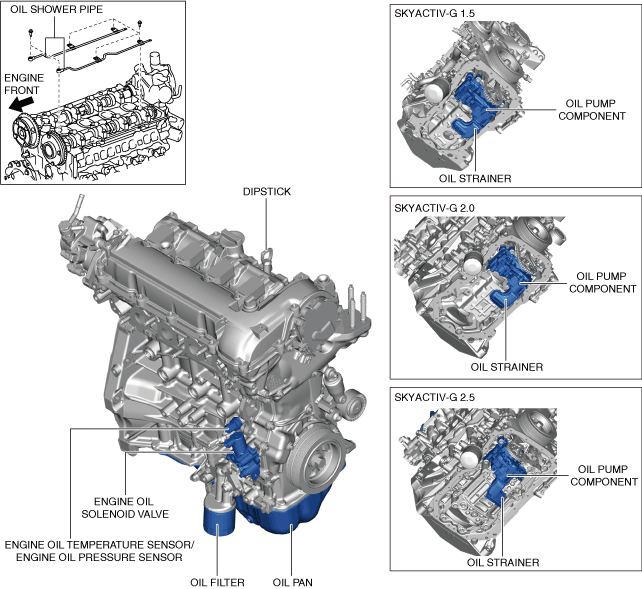

am3zzn00009860

Flow View

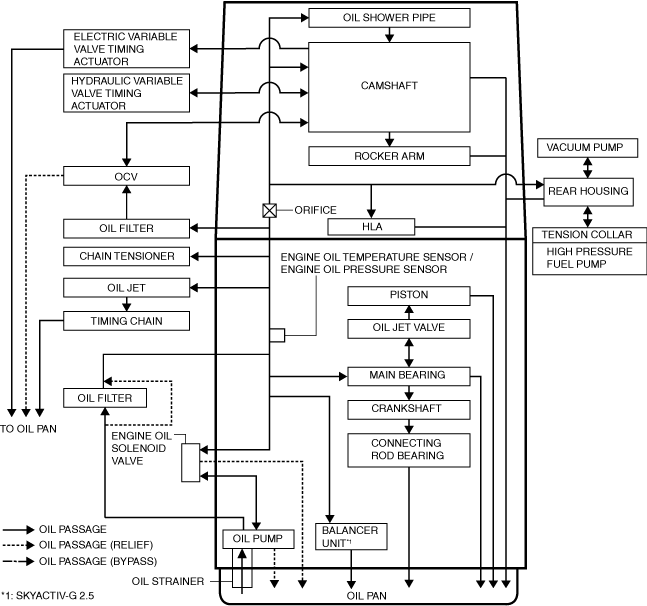

am3zzn00009804

Structure

•  Consists of the following parts:

Part name

Reference
Oil filter
―
Oil pan
―
Oil strainer
―
Oil pump
(See OIL PUMP [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
Oil jet valve
(See OIL JET VALVE [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
Engine oil solenoid valve
(See ENGINE OIL SOLENOID VALVE [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
Oil shower pipe
(See OIL SHOWER PIPE [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
