LUBRICATION SYSTEM [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))]

id0111u3002100

Outline

• Hydraulic passages for cylinder deactivation have been added to the cylinder head.

Structural View

am3zzn00009861

Flow View

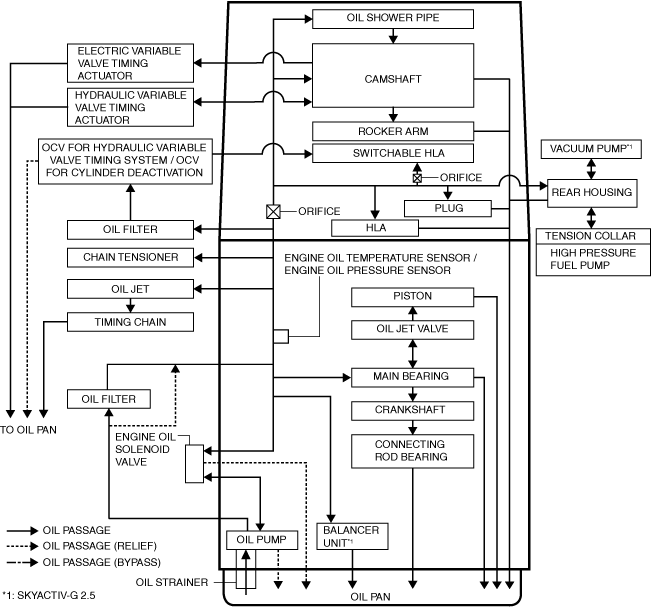

am3zzn00009316

Structure

• Consists of the following parts:

Part name	Reference
Oil filter	―
Oil pan	―
Oil strainer	―
Oil pump	(See OIL PUMP [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
Oil jet valve	(See OIL JET VALVE [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
Engine oil solenoid valve	(See ENGINE OIL SOLENOID VALVE [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
Oil shower pipe	(See OIL SHOWER PIPE [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
